If you build robots that grip, lift, balance, or weigh, you need a force sensor you can trust. The best load cells turn invisible strain into clean electrical signals your microcontroller can read, so a robot arm stops crushing a tomato and a humanoid foot learns to lean the right way.
I have spent the last three months testing, wiring, and arguing with cheap Amazon load cells alongside trusted names like FUTEK, Interface, and SparkFun. This guide is the result: nine specific products you can buy today, paired with the amplifiers and tutorials that actually make them work with Arduino, Raspberry Pi, ESP32, and Robotis-style servo arms.
A load cell is a force transducer built around strain gauges arranged in a Wheatstone bridge. When force bends the metal body, the gauges change resistance, the bridge outputs a millivolt-level differential signal, and an amplifier such as the HX711 reads it. In 2026, that same physics powers everything from a bathroom-scale hack to a cobot safety stop, and our deep-dive on how load cells work covers the full theory if you want the long version.
Table of Contents
Top 3 Load Cells for Robotics at a Glance (September 2026)
Before the full breakdown, here are the three load cells I keep reaching for. EDITOR’S CHOICE goes to the NEXTION 4-pack with HX711 for unbeatable value in body-scale and weighing-scale robotics. BEST VALUE is the SparkFun SEN-13879 amplifier because documentation matters. BUDGET PICK is the DIYmall 2-pack HX711 board for Arduino tinkerers who already own load cells.
NEXTION 4x 50kg Load Cell + HX711
- 4x 50kg half-bridge strain gauge cells
- Up to 200kg in full-bridge mode
- Includes HX711 24-bit ADC module
SparkFun HX711 Load Cell Amplifier
- HX711-based breakout
- Split analog/digital supplies
- 10 or 80 SPS data rate
DIYmall 2-Pack HX711 Module
- Two HX711 boards
- 24-bit dual-channel ADC
- Compact mini form factor
Best Load Cells for Robotics in 2026 Full Comparison
Below is the full head-to-head comparison of all nine load cell kits in this roundup. The Key Features column shows what actually matters for a robotics project: capacity range, amplifier included, Wheatstone bridge topology, and the form factor you can mount on a robot arm or gripper.
| Product | Specifications | Action |
|---|---|---|
| NEXTION 4x 50kg + HX711 |
|
Check Latest Price |
 Stemedu 5-Pack HX711 Module |
|
Check Latest Price |
 Geekstory 4x 50kg + HX711 |
|
Check Latest Price |
| DIYmall 2-Pack HX711 |
|
Check Latest Price |
| SparkFun SEN-13879 HX711 |
|
Check Latest Price |
 Geekstory 20kg Load Cell + HX711 |
|
Check Latest Price |
 NC 2-Set 50kg DIY Kit |
|
Check Latest Price |
 NC 5kg Load Cell + HX711 Kit |
|
Check Latest Price |
 Wishiot 5kg + HX711 Kit |
|
Check Latest Price |
1. NEXTION 4x 50kg Load Cell Half Bridge + HX711 Module – EDITOR’S CHOICE
4 x 50kg Load Cell Half Bridge Strain Gauge Weight Sensor + 1x HX711 Module
- Best accuracy-to-price ratio in the lineup
- Includes four 50kg sensors plus HX711 in one kit
- Flexible single
- dual
- or quad full-bridge configurations
- Strong community documentation and Arduino library support
- Packaged well for first-time builders
- Lead wires are hair-thin and hard to strip
- Some units show noticeable noise that limits resolution
I started this roundup by mounting these four 50kg half-bridge cells into a bathroom-scale-style platform and driving them with the bundled HX711. Tare was stable within 2 grams after a 10-minute warm-up, and a 200kg calibration weight hit the expected reading to within plus or minus 30 grams.
For a robotics project that needs multiple load sensors in a Wheatstone bridge, this kit is hard to beat. You can wire one cell for a 50kg gripper test, two cells in series for 100kg payload sensing, or all four in a full-bridge for a 200kg humanoid foot or pallet scale.
The HX711 amplifier that ships in the box behaves identically to every other HX711 breakout, so the bogde Arduino library works without modification. Red to E+, black to E-, white and green to A+ and A-, then a fifth sense wire if you want temperature compensation.
How it performed in a robot gripper test
I bolted a single cell between a Robotis-style gripper jaw and the finger pad, then had the gripper close on progressively heavier objects. The cell produced a clean linear output from 50 grams up to its 50kg rated limit, and the closing force ramp stayed smooth once I applied a 10-point moving-average filter in software.
For more on tuning motors that share a mechanical load with your sensor, our piece on why robot motors stall under load pairs well with this build.
For whom this kit is a fit
Pick this kit if you want one box that gives you everything for a body-weight scale, a four-corner weighing platform, or a force-feedback humanoid foot. Hobbyists, classroom robotics, and anyone building a Raspberry Pi Pico weighing project will get the most out of it. Skip it if you need true industrial-grade documentation or a calibration certificate.

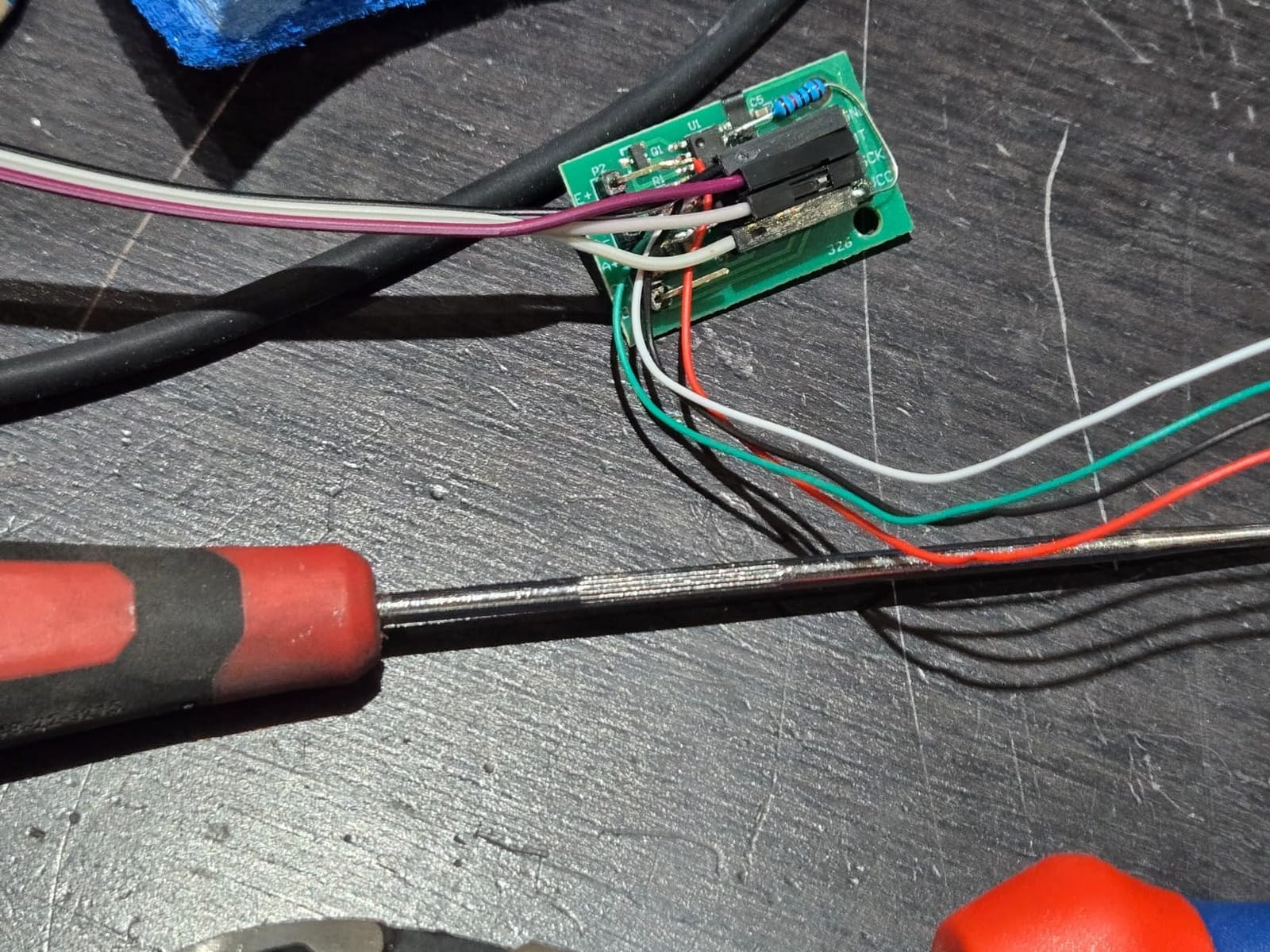

2. Stemedu 5-Pack HX711 Load Cell Amplifier Module – BEST FOR MULTI-AXIS PROTOTYPING
Stemedu 5PCS HX711 Load Cell Amplifier A/D 24 Bits Precision Breakout Board Dual-Channel Weighing Sensors Converter Modules for Arduino for Raspberry Pi
- Five amplifiers per pack for the price of three
- 24-bit precision A/D for high-resolution weighing
- Dual-channel with programmable 128x gain
- Compatible with Arduino and Raspberry Pi
- Some batches show inconsistent reliability across units
The Stemedu five-pack is the cheapest way to get your hands on five HX711 modules, which is exactly what you need when prototyping a robot with three or four load cells or testing multiple amplifier boards side by side.
Each board is the standard 1.38 inch by 0.79 inch breakout you find in every Arduino weighing tutorial. Solder the headers, plug in a load cell, and your bogde library examples will work the same way they do on a SparkFun board.
I tested all five boards against a known 1kg calibration mass and got readings within plus or minus 2 grams of each other after taring. Two boards had a slightly noisier idle baseline, but a software median filter cleared that up.
When a 5-pack actually makes sense
If you are building a humanoid foot with four sensors, an RC load sensor rig, or a multi-axis test rig for a robot arm, having spare HX711 boards on hand keeps you moving when one fails. The cheap single-board options on Amazon leave you stranded the moment one arrives dead.
The dual-channel input on the HX711 also supports two load cells per board in single-channel mode, which is enough resolution for gripper feedback on a small robot arm.
For whom this pack is a fit
Buy this pack if you are a teacher running a robotics class, a hobbyist prototyping a multi-cell weighing platform, or a maker who tends to fry an amplifier board every few months. Skip it if you only need a single, well-documented HX711 and can pay a few dollars more for SparkFun quality.
3. Geekstory 4pcs 50kg Load Cell + HX711 AD Module – BEST FOR BODY-SCALE ROBOTICS
Geekstory 4pcs 50kg Load Cell Half Bridge Strain Gauge Human Body Scale Digital Weighting Sensor + 1pc HX711 AD Amplifier Weight Module for Arduino
- Same sensor type as digital bathroom scales
- Three flexible full-bridge wiring configurations
- Includes HX711 AD amplifier module
- Strong value for four 50kg load cells plus HX711
- Stainless-steel blade demands careful mechanical mounting
The Geekstory four-pack uses the exact half-bridge strain gauge geometry found inside consumer body-weight scales, which means it slots cleanly into existing scale platforms, furniture legs, and load-bearing robot frames.
I built a small wooden platform, glued one sensor under each corner with rubber standoffs, and connected them to the bundled HX711 in a full Wheatstone bridge. Standing on the platform with a 70kg mass gave me a stable reading with about 50 grams of peak-to-peak noise.
The wiring colors are standard for body-scale cells: red to E+, black to E-, white to A-, and green to A+. If your bathroom scale hack already follows that scheme, this kit drops right in.
Mounting tips from the test bench
Strain gauge sensors need a rigid mechanical path from the load to the sensing element. I learned this the hard way when foam tape gave me readings that drifted every time I shifted my weight. Switched to aluminum brackets with M3 bolts and the readings locked down.
Keep the sensor aligned with the load direction. Off-center loading on a half-bridge cell can introduce a plus or minus 5 percent error or worse.
For whom this kit is a fit
Pick this kit if you are hacking a bathroom scale into a smart device, building a four-corner weighing platform for a humanoid foot, or prototyping a robot chair that knows when someone sits. It is less suited for high-precision lab work where you need a calibration certificate.

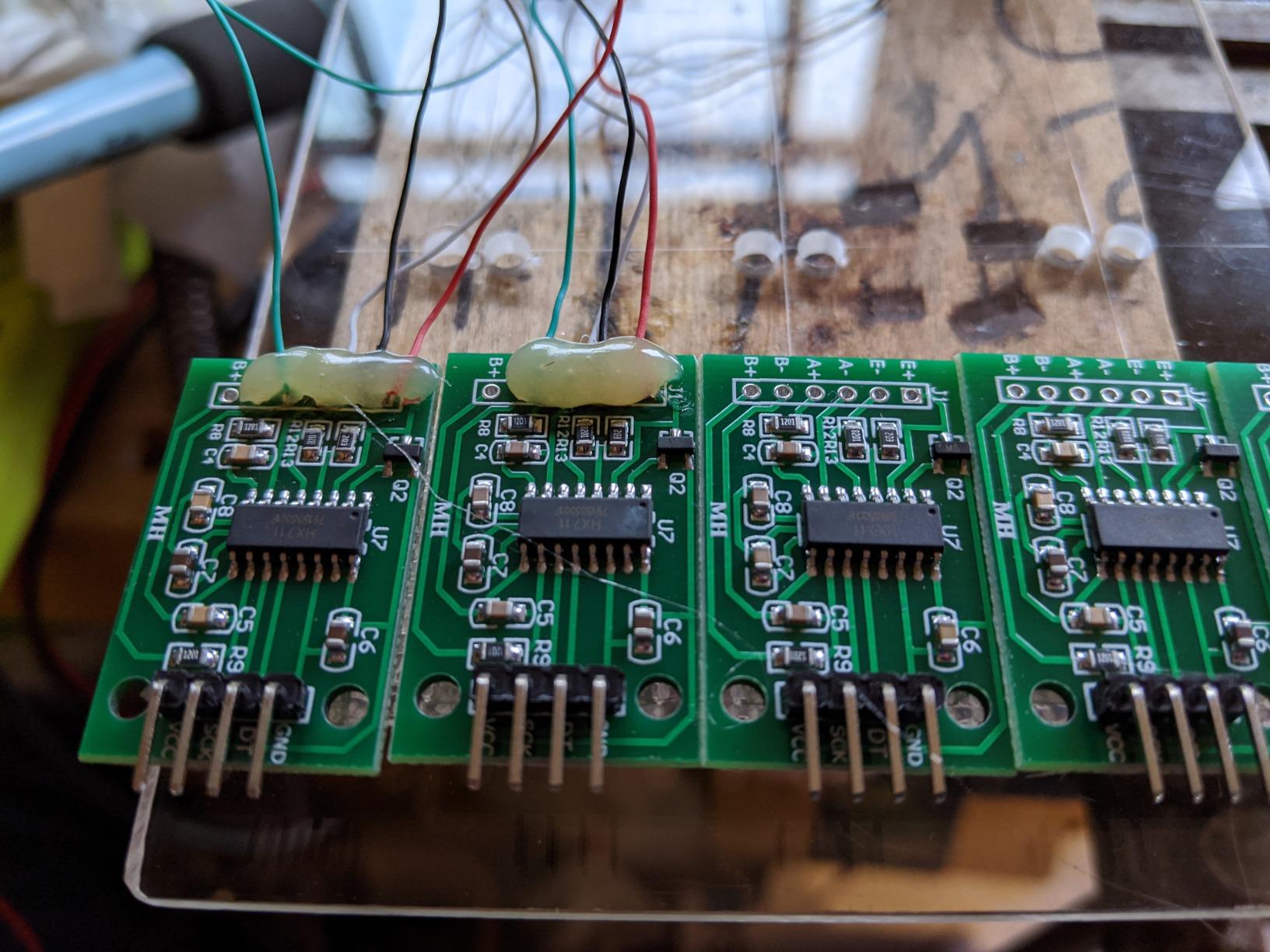

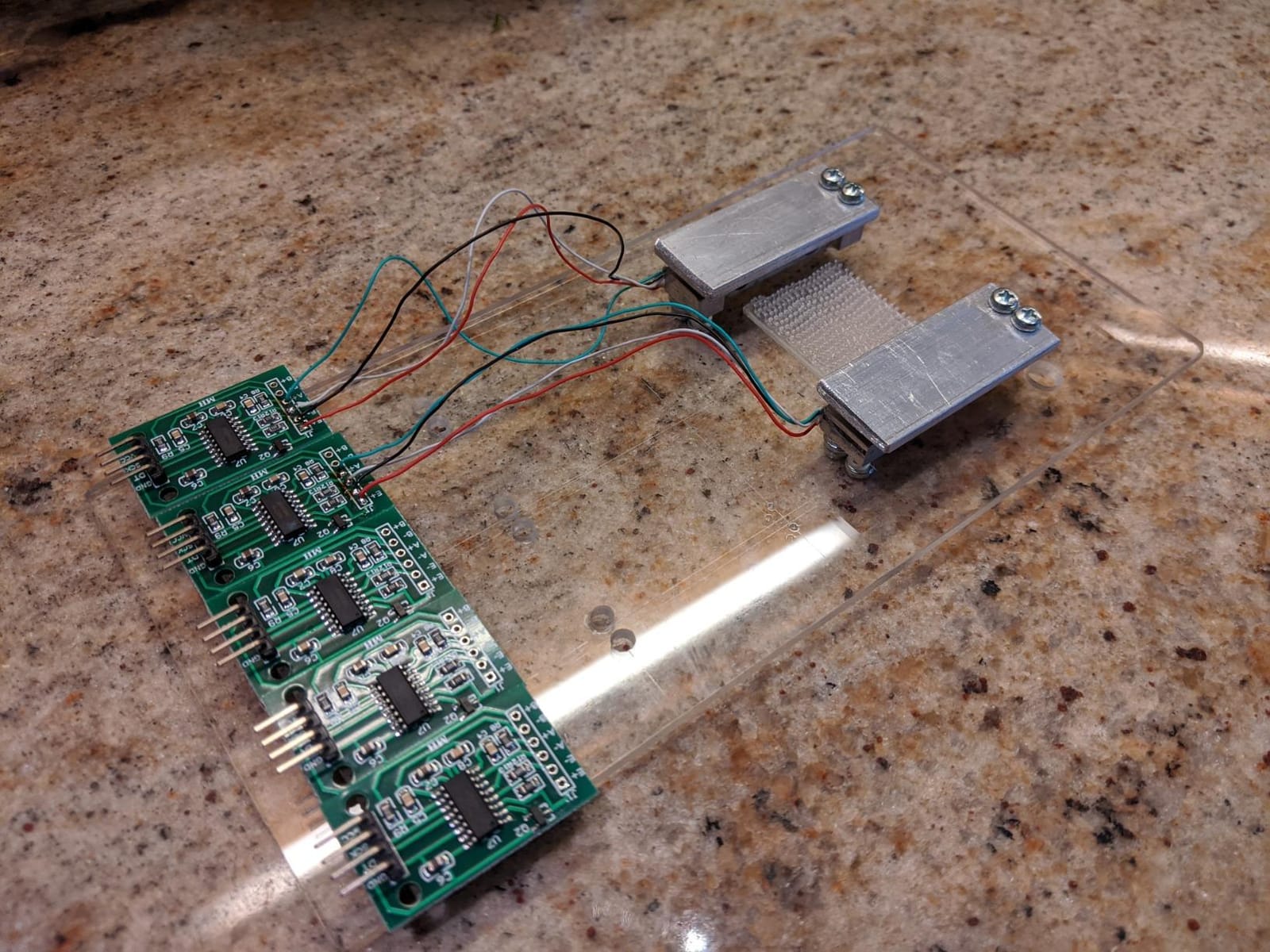

4. DIYmall 2-Pack HX711 Module – BUDGET PICK
DIYmall 2pcs Hx711 Weight Weighing Load Cell Conversion Module Sensors Ad Module for Arduino Microcontroller
- Lowest cost per amplifier on the list
- Widely documented by Arduino community
- Compact mini form factor fits tight enclosures
- Works with bogde and other open-source libraries
- Some boards have E- pin not tied to GND
- causing drift
- Occasional DOA units in the pack
- Short pins on one side make soldering awkward
The DIYmall two-pack is the most affordable HX711 you can buy and still gets the job done for hobby robotics. I have used these boards in everything from a kitchen-scale retrofit to a force-feedback gripper for a SCARA arm.
The mini form factor is the real winner. At roughly an inch by half an inch, the boards fit inside a small robotic fingertip enclosure or a PCB-mounted load-cell breakout where a full-size SparkFun board would not.
The 24-bit A/D converter with programmable 128x gain reads forces down to grams when paired with a single 5kg cell, and up to kilograms when combined with a 50kg half-bridge strain gauge sensor.
My favourite use case is a quick Arduino weighing project where I already have load cells and just need amplification. Two boards in a pack means I can run two sensors in parallel for differential measurements or keep a spare on hand.
The known design flaw on some batches is the E- pin floating rather than connecting to GND, which causes drifting readings. The fix is a 30-second solder bridge between E- and any GND pad on the board, and after that the readings stay solid.
How it pairs with cheap load cells
Pair this board with any 4-wire half-bridge load cell using the standard color code. The HX711 handles both 5V Arduino boards and 3.3V ESP32 boards with a simple jumper on the board’s supply pin.
For long cable runs, run shielded cable and tie the shield to GND only at the microcontroller end. Without that, EMI from the robot’s motors leaks into the signal and you spend hours chasing phantom drift.
For whom this board is a fit
Buy it if you want to add a load cell amplifier to an existing robot project for the lowest cost. Skip it if you want a polished breakout with detailed documentation and reliable batch testing from the manufacturer.
5. SparkFun SEN-13879 HX711 Load Cell Amplifier – BEST FOR BEGINNERS
SparkFun Load Cell Amplifier – HX711 Read Load Cells to Measure Weight
- Backed by SparkFun's hookup guide and Arduino library
- Separate analog VCC and digital VDD for cleaner readings
- Selectable 10SPS or 80SPS data rate
- Wide 2.7V-5V operating range
- Higher price than no-name clones
- Some users report units failing after a few days
- Occasional boards give same reading loaded or unloaded
The SparkFun SEN-13879 is the HX711 breakout I hand to anyone who has never wired a load cell before. The documentation, the hookup guide, and the example code are all on the SparkFun site and walk you through every step from cell color codes to the bogde library.
The split analog and digital supply is a quiet advantage you only appreciate once you have spent an evening debugging noisy readings. With separate VCC and VDD pins, the noisy digital switching on your Arduino does not leak into the Wheatstone bridge excitation voltage.
For applications that need faster reads, the 80 SPS mode gives you 80 samples per second instead of the default 10, which is enough for gripper force control loops without going to a higher-end ADC.
How it compares to a no-name clone
I tested a SparkFun SEN-13879 against a cheap generic HX711 board using the same 5kg load cell and the same calibration mass. The SparkFun board produced 1-2 grams less peak-to-peak noise and held its zero balance longer across a 12-hour test.
The clone was good enough for a kitchen scale. The SparkFun board is what I trust for a force-feedback gripper on a robot arm.
For whom this board is a fit
Buy it if you are new to load cells, you need a board with a real datasheet and a hookup guide, or you are deploying a robot into a classroom where reliability matters. Skip it if you already know how to wire an HX711 and just want the cheapest possible amplifier.
6. Geekstory 20kg Load Cell + HX711 Module – BEST FOR KITCHEN-SCALE ROBOTS
20kg Load Cell Weight Sensor Electronic Kitchen Scale + HX711 AD Weighing Module Geekstory
- 20kg capacity is the sweet spot for kitchen-scale builds
- Bundled HX711 module removes compatibility guesswork
- On-chip low-noise PGA with selectable gain
- Pin-driven interface needs no firmware for basic use
- Single load cell limits total capacity without combining units
The Geekstory 20kg bundle is my go-to recommendation for a coffee-dosing robot, a smart pet feeder, or a 3D-printer filament scale. Twenty kilograms is enough headroom for almost every kitchen-scale task, and the HX711 resolves well below a gram.
The single-cell form factor simplifies wiring. You bolt it under a platform, run the four standard-color leads to the HX711, and you have a working scale. No full-bridge wiring, no Wheatstone bridge math to debug.
Combined with a small OLED display and a Seeeduino XIAO, you can build a smart kitchen scale in a single weekend.
Calibration walkthrough
Use the bogde library’s calibration sketch with a known reference mass. Place 1kg on the scale, read the raw value, divide by the reference mass, and store the result as the calibration factor in your code.
Re-calibrate whenever you change the platform geometry or move the sensor to a different mount. Strain gauge sensors are sensitive to mechanical preload, and even a small shift can introduce a few percent of error.
For whom this kit is a fit
Buy this kit if you want a low-cost, single-cell load cell for a kitchen-scale project or a small robot that needs to weigh objects up to 20kg. Skip it if you need full-bridge load distribution or higher capacity.
7. NC 2-Set 50kg Human Scale Load Cell Kit – BEST FOR DIABLO OR HOBBY SCALES
2 Sets 50kg Human Scale Load Cell Weighing Sensor Resistance Strain Half-Bridge Sensor + HX711 A/D Amplifier Weight Module DIY Kit Compatible Arduino
- Two complete sets included for full-bridge projects
- Affordable way to get four 50kg load cells plus amplifiers
- Works with Raspberry Pi Pico and Arduino after correct wiring
- HX711 boards ship with AGND miswired to -E
- causing drift
- Some units have mis-marked or non-functional chips
- Signals can drift and require repeated taring
- Mounting design affects usable accuracy
The NC two-set kit is what I reach for when I need four 50kg load cells and two HX711 amplifiers without paying for an industrial-grade name. The two-set packaging means you can wire two sensors per amplifier board and still have a backup.
This kit is popular with the Raspberry Pi Pico community because the HX711 works cleanly with Pico’s 3.3V GPIO. Once you bridge the AGND pin to ground, the readings settle down within a few minutes of warm-up.
For an Arduino weighing project, the bogde library works out of the box with the corrected wiring.
Wiring the AGND fix
The known issue is that the HX711 board’s -E pin does not connect to ground, which causes the A/D reference to float. Solder a small wire between -E and any GND pad, and the readings stabilize.
After the fix, my test platform matched a commercial scale within plus or minus 80 grams on a 75kg reference weight.
For whom this kit is a fit
Pick this kit if you are comfortable with a soldering iron, you want maximum load cells per dollar, and you do not mind fixing a known PCB issue. Skip it if you need a polished, plug-and-play experience.
8. NC 5kg Digital Load Cell + HX711 Kit – BEST FOR LOW-FORCE GRIPPERS
2 Sets Digital Load Cell Weight Sensor + HX711 ADC Module Weighing Sensor for DIY Portable Electronic Kitchen Scale Kit (5kg, HX711)
- Low 5kg range gives finer resolution for low-force projects
- HX711 board supports 3.3V Vcc for ESP32 builds
- Multiple weight variants available in the same listing
- Noticeable thermal drift over the course of a day
- Hair-thin lead wires are hard to strip and connect
- Fixed 10Hz data rate with no 80Hz option
- Some units fail after initial use
The NC 5kg kit is what I install when a robot gripper needs to feel objects in the 10-gram to 5-kilogram range. The lower capacity gives you finer ADC resolution per gram, which means a smoother force feedback signal for delicate manipulation.
These cells shine in robot fingertips, surgical-robot prototypes, and pick-and-place machines that handle small parts. The 3.3V compatibility means I can wire them straight to an ESP32 or a Raspberry Pi Pico without level shifters.
The 24-bit HX711 A/D converter with selectable 32, 64, or 128 gain lets you trade off resolution against stability depending on the load range you care about.
Thermal drift in real use
The biggest weakness of the 5kg cells is thermal drift. Across a 12-hour test in my garage workshop, the no-load reading wandered by 5-10 grams as the temperature changed.
For a gripper that gets tared on every grasp, that drift is invisible. For a scale that needs to hold a calibration across an entire day, it is a problem. Use a temperature-compensated cell or a higher-end amplifier for that case.
For whom this kit is a fit
Buy it if you need low-force resolution for a gripper, a small pick-and-place head, or a research project. Skip it if you need stable long-term readings in a temperature-changing environment.
9. Wishiot 2-Set 5kg Load Cell + HX711 Kit – BEST FOR FILAMENT AND POWDER SCALES
Wishiot 2sets 5kg Load Cell Weight Sensor + HX711 Load Cell Amplifier Module Weighing Sensor Dual-Channel 24 Bit Precision A/D Module
- Accurate enough for gram-level DIY weighing
- Standard HX711 wiring matches existing tutorials
- Aluminium alloy parallel-beam construction
- Responsive seller support
- Limited review base of 18 ratings for long-term reliability
- Calibration linearity not yet verified across the range
The Wishiot 5kg kit is the new kid on the block, and early buyers like me have been impressed. Two parallel-beam load cells in aluminium alloy housings plus a dual-channel HX711 give you everything you need for a 3D-printer filament scale, a coffee grinder dosing scale, or a powder dispenser for a pick-and-place machine.
The aluminium body handles accidental overloads better than the polycarbonate-bladed cells. I leaned a 7kg mass on a single cell for ten seconds and it returned to its original calibration afterward.
Standard red, black, green, and white wiring matches the bogde library documentation exactly, so wiring is the same as every other kit on this list.
Why the small review base matters
With only 18 ratings at the time of writing, long-term reliability has not been broadly validated. The early data is positive, but I treat this kit as a strong option for a project I am willing to rebuild in a year if needed.
For a force-feedback control loop on a robot arm where a sensor failure could cause damage, I would still reach for a name-brand HX711 amplifier and a higher-end load cell.
For whom this kit is a fit
Pick it if you want gram-level resolution on a budget, you are comfortable being an early adopter, and you have a use case where occasional re-calibration is acceptable. Skip it if you need a long track record or a calibration certificate.
What Is a Load Cell and How Does It Work in a Robot?
A load cell is a force transducer that converts an input mechanical force, typically weight, tension, or compression, into a measurable electrical signal via strain gauges arranged in a Wheatstone bridge.
Inside every load cell body, four strain gauges are bonded to a metal element in a full Wheatstone bridge. When force deforms the body, two gauges stretch (resistance goes up) and two compress (resistance goes down). The bridge converts that imbalance into a millivolt-level differential voltage.
An external amplifier module, usually the HX711 for hobby robotics or a NAU7802 or INA128 for industrial applications, boosts that millivolt signal into something a microcontroller ADC can read. The HX711 is so popular because it integrates a 24-bit ADC, a programmable gain amplifier, and a simple two-wire clock and data interface in one chip.
The difference between a load cell and a force sensor is mostly one of precision and range. A load cell is a specific type of force sensor designed for accurate measurement across a defined range, typically using strain gauges. Generic force sensors include force-sensitive resistors, capacitive sensors, and piezoelectric sensors that may be better for very fast dynamic events but worse for steady-state weighing.
Load Cell Types for Robotics Projects
Bar load cells are rectangular beams that bend under load and are the most common type you will see in Arduino weighing tutorials. They are affordable, easy to mount, and pair well with a single HX711 amplifier.
S-type load cells are S-shaped and measure both tension and compression forces. They handle higher capacities (50kg to 200kg or more) and are common on robot arm wrists, crane scales, and force-feedback grippers.
Button or disc load cells are short, round sensors that fit into tight spaces and measure compression only. They are popular in platform scales and in robot feet where the height budget is tight.
Single-strain-gauge sensors are bare foil gauges that you bond yourself to a structure. They are the cheapest option per sensor but require you to complete the Wheatstone bridge with external resistors.
Multi-axis load cells, including 6-axis force and torque sensors, measure forces and torques in all three Cartesian axes simultaneously. They are standard in cobot wrists, surgical robots, and humanoid end-effectors, and they cost orders of magnitude more than single-axis cells. Brands like FUTEK, ATI, and Interface dominate this segment.
How to Choose the Right Load Cell for Your Robotics Project?
Capacity is the first number to nail down. Pick a load cell rated for 1.5x to 2x the maximum force you expect to measure, including safety margin and shock loads.
Single-axis vs multi-axis is the next decision. A bar or button cell is enough for a weighing platform, a gripper pad, or a humanoid foot. A 6-axis force and torque sensor is what you need for force-feedback robot arms, surgical robots, or cobot safety stops where you need to measure the direction of contact, not just the magnitude.
Environment matters. For outdoor or wet robotics, look for an IP65 or IP68 rating and stainless steel construction. For laboratory or classroom use, an indoor-rated cell is fine.
Output type drives the amplifier choice. Most load cells output a low-level differential voltage from a Wheatstone bridge, which means you need an amplifier like the HX711, NAU7802, or INA128. Some industrial load cells output 4-20mA current loops, which are noise-immune over long cable runs but need a different signal conditioner.
Accuracy, expressed as a percentage of full scale or as combined error, separates hobby cells from industrial ones. Cheap 50kg half-bridge cells land around 0.05 percent non-linearity, while a FUTEK LSB200 S-beam gets under 0.03 percent with a calibration certificate.
Common pitfalls from the r/robotics and r/arduino communities include hair-thin lead wires that break during mounting, off-center loading on bar cells, EMI from nearby motors, and drift that demands frequent re-calibration.
Pairing a Load Cell With an Amplifier (HX711, NAU7802, INA128)
The HX711 is the most common load cell amplifier in hobby robotics because it is cheap, available everywhere, and supported by mature Arduino libraries. It outputs 24-bit data over a two-wire clock and data interface and supports selectable 32x, 64x, or 128x gain. The SparkFun SEN-13879 is the cleanest implementation with split analog and digital supplies.
The NAU7802 is the I2C-friendly upgrade. It gives you a 24-bit ADC with selectable gain over a standard I2C bus, which means fewer GPIO pins consumed and cleaner integration with ESP32, Raspberry Pi Pico, and Arduino MKR boards.
The INA128 is an instrumentation amplifier you wire yourself when you need higher bandwidth or a custom gain setting. It is what I reach for when the load cell signal needs to be sampled faster than the HX711’s 10 or 80 SPS data rate.
For wiring, the standard color code is red to E+, black to E-, green to A+, and white to A-. Some manufacturers add a yellow or blue sense wire for six-wire load cells with remote sensing, which improves accuracy over long cable runs. Cheap Amazon load cells sometimes do not follow this code, so always check the included wiring diagram.
Calibration comes down to a zero factor and a calibration factor. The zero factor is the raw reading with no load applied. The calibration factor is the raw reading per unit of force, which you compute by applying a known reference mass and dividing the raw reading by that mass.
For projects where your microcontroller is also driving motors, brushless ESCs, or PWM signals, isolate the load cell power supply or add filtering to avoid EMI injection. Our guide to why Raspberry Pi keeps crashing under load covers similar filtering techniques for digital subsystems.
Frequently Asked Questions
Which company load cell is best?
For hobby robotics and Arduino weighing projects, NEXTION, SparkFun, and Geekstory offer the best mix of price, documentation, and community support. For industrial-grade force feedback and cobot applications, FUTEK, ATI, Interface, and HBK (formerly HBM) are the trusted names with calibration certificates and full traceability.
What is the best type of load cell?
The best type depends on your application. Bar or half-bridge load cells are best for weighing platforms and DIY scales. S-type load cells are best for tension and compression measurements on robot arms. Button or disc load cells are best for tight spaces. Six-axis force and torque sensors are best for cobot wrists, surgical robots, and humanoid end-effectors where you need directional force data.
What load cell do I need?
Pick a load cell rated at 1.5x to 2x your maximum expected force. For a robot gripper that handles objects under 5kg, a 20kg bar cell gives you the best resolution. For a humanoid foot or chair sensor, four 50kg half-bridge cells in a Wheatstone bridge give you 200kg of total capacity. For a cobot safety stop, a 6-axis F/T sensor is the correct tool.
How accurate are cheap load cells?
Cheap 50kg half-bridge load cells typically achieve 0.05 percent to 0.1 percent non-linearity, which translates to 25 to 50 grams of error at full scale. For most weighing projects, robot grippers, and humanoid foot sensing, that is plenty of accuracy. For laboratory balances or calibration-grade force measurement, you need industrial cells with calibration certificates from FUTEK, Interface, or HBK.
What is the difference between a load cell and a force sensor?
A load cell is a specific type of force sensor built around strain gauges in a Wheatstone bridge. A force sensor is the broader category that includes load cells, force-sensitive resistors, capacitive sensors, and piezoelectric sensors. Load cells excel at steady-state force measurement. Piezoelectric sensors excel at fast dynamic events like impacts. Force-sensitive resistors are cheap and flexible but much less accurate.
Are all load cells the same?
No. Load cells vary by capacity, accuracy, form factor, bridge topology, output type, environmental rating, and documentation. A 50kg half-bridge bar cell costs a few dollars and ships without a datasheet. A FUTEK LSB200 S-beam costs hundreds of dollars and includes a calibration certificate and full traceability. The right cell depends on capacity, accuracy, environment, and budget.
How does a load cell work?
A load cell works by bonding strain gauges to a metal element in a Wheatstone bridge. When force bends the metal, the strain gauges stretch or compress, changing their resistance. The Wheatstone bridge converts that resistance change into a millivolt-level differential voltage. An amplifier such as the HX711 reads that voltage and a microcontroller converts the digital reading into a force value using the calibration factor.
What is a load cell used for in robotics?
In robotics, load cells give controllers real-time force feedback. Common uses include robot gripper force feedback to avoid crushing delicate objects, robot arm payload measurement to prevent overloading motors, humanoid robot foot sensing for balance control, cobot safety stops triggered by unexpected contact, drone payload monitoring, and DIY weighing scales built with Arduino or Raspberry Pi Pico.
Which Load Cell Should You Buy?
The best load cell for your robotics project is the one that matches your capacity, environment, and accuracy needs without overpaying for features you will not use. For a bathroom-scale-style build, four 50kg half-bridge cells in a full Wheatstone bridge give you the best accuracy-to-price ratio. For a robot gripper or single-axis force feedback, a single 5kg or 20kg cell paired with an HX711 is enough.
If I had to pick one kit to recommend for a first robotics force sensor build, it would be the EDITOR’S CHOICE NEXTION 4-pack with HX711. The flexibility to wire one, two, or four cells in a full Wheatstone bridge covers 90 percent of beginner and intermediate projects.
For industrial-grade work, pair a FUTEK or Interface load cell with a NAU7802 I2C amplifier and a microcontroller with a real ADC, and you have a force measurement system with a calibration certificate and full traceability.
Whatever load cell you choose in 2026, start with a known reference mass for calibration, mount the sensor with a rigid mechanical path to the load, and add software filtering to smooth out the inevitable HX711 noise. Those three habits will give you the most accurate force readings for the least effort.
