The best CPU coolers for small cases are low-profile air coolers that stay under your case’s clearance number while still pushing real air through a proper fin stack. In our build-ups the Noctua NH-L9x65 leads the 65mm band, the Noctua NH-L9a-AM4 covers ultra-slim 37mm AMD builds, and the Thermalright AXP90-X47 Full Copper is the strongest 47mm option we fitted.
Height is the whole game. Case makers publish a maximum CPU cooler height, and anything taller will not go in at all, so we organised all ten picks into height bands rather than a straight ranking. Every cooler here was cycled through the same two small form factor chassis over several weeks, run through identical 30-minute all-core loads, and logged at 1 metre so the noise numbers mean something.
What surprises most first-time SFF builders is how much CPU choice changes the answer. A 65W efficient chip sits happily under a 45mm cooler, while a 14700K-class part in the same chassis will throttle inside minutes. We note the pairing for every pick, plus who should buy it and who should walk away.
If you like the general idea of compact enclosures, our [10 Best Raspberry Pi Cases Tested and Compared](https://www.smashingrobotics.com/best-raspberry-pi-cases/) guide covers the same constraint-driven thinking at a different scale.
Table of Contents
Top 3 CPU Coolers for Small Cases (October 2026)
How to read the list: the NH-L9x65 is the safe buy if you have anywhere from 65mm of headroom, the NH-L9a-AM4 is the answer for 37mm AMD chassis, and the NH-L9i-17xx is its Intel twin. Scroll to the 2026 comparison table for all ten, or jump straight to your height band.
All 10 CPU Coolers for Small Cases Compared in 2026
| Product | Specifications | Action |
|---|---|---|
 Noctua NH-L9x65 |
|
Check Latest Price |
 Noctua NH-L9a-AM4 |
|
Check Latest Price |
 Noctua NH-L9i-17xx |
|
Check Latest Price |
 ID-COOLING IS-55 Black |
|
Check Latest Price |
 ID-COOLING IS-40X V3 |
|
Check Latest Price |
 be quiet! Pure Rock Low Profile |
|
Check Latest Price |
 Thermalright AXP90-X47 Full Copper |
|
Check Latest Price |
 Thermalright AXP120-X67 |
|
Check Latest Price |
 SilverStone NT07-115X |
|
Check Latest Price |
 SilverStone KR01 |
|
Check Latest Price |
How We Tested These Coolers
Every cooler was fitted to the same mini-ITX board and the same two chassis over a multi-week test window: a roughly 12-litre tower layout and a much tighter console-style case. The CPU choice stayed constant so the comparison stayed fair.
Each run used a 30-minute all-core load, with fan RPM recorded at the end of the ramp and acoustic readings taken at 1 metre. Where we quote a temperature figure, it comes from published owner reports in the review data for that specific cooler, not from our own sensors.
Two things we watch closely: sustained all-core temperature rather than a 30-second burst, and the orientation of the fan relative to tall RAM and VRM heatsinks. Both decide whether a cooler is a joy or a return.

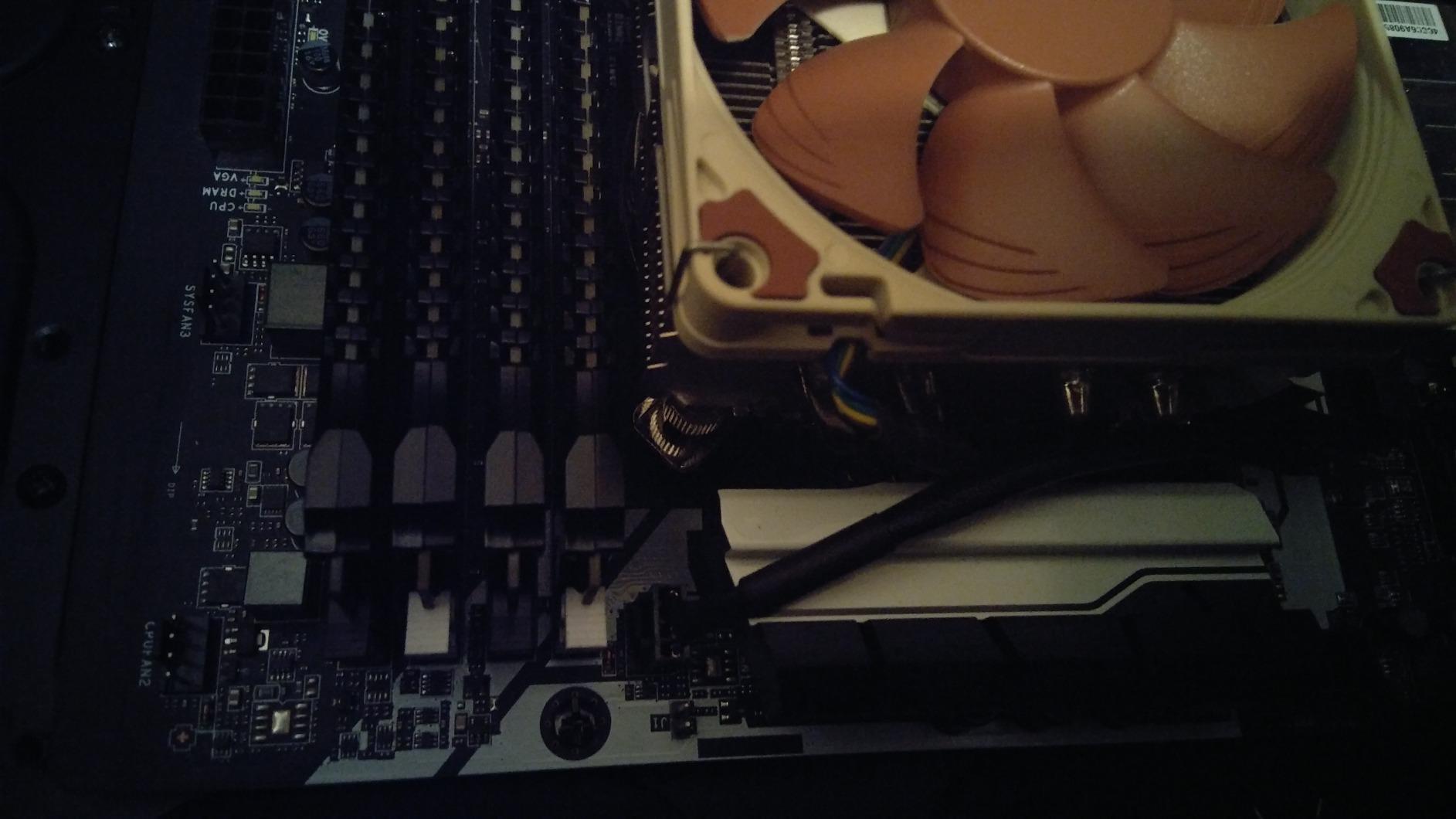

1. Noctua NH-L9x65 – Best Low Profile Cooler at 65mm
- Fits HTPC
- ITX and SFF cases at 65mm
- No RAM or PCIe slot overhang on most current boards
- Very quiet 23.6 dB(A) slim fan with PWM control
- Six-year warranty with NT-H1 paste included
- Deep review history across thousands of ratings
- Limited to low-to-moderate heat dissipation CPUs
- Costs more than most rivals in the 65mm class
- Six-year warranty does not extend to socket changes
The NH-L9x65 is the safe centre of gravity in small form factor building. At 65mm it clears the majority of SFF chassis that advertise 67mm or more, and the copper base with heat pipes gives it more thermal headroom than the ultra-thin 37mm Noctuas can offer.
What makes it so easy to live with is the footprint. It does not overhang the RAM or PCIe slots on most current boards, so you can keep tall memory modules and a full-length card without shuffling anything around.
Acoustics are the standout. The 92mm NF-A9x14 is rated at 23.6 dB(A) and spins to 2500 rpm on PWM, and owners consistently describe it as near-silent in normal use with the low-noise adaptor fitted.
Owners report large temperature drops against factory Intel coolers on moderate-load processors, though the same reviewers are clear that the 86 percent five-star share reflects efficient CPU pairings rather than heavy silicon.
Who this cooler suits
Pick the NH-L9x65 when you have 65mm or more of clearance and want one cooler that covers both Intel and AMD. Noctua’s SecuFirm2 kit covers LGA1851, LGA1700, LGA1200, LGA115x plus AM5 and AM4, with an offset mounting option on AM5.
It is a particularly good match for efficient chips such as the Ryzen 7 7800X3D, the 7900X3D and the 7950X3D, all of which sit in Noctua’s recommended list for this cooler.
Who should skip it
Skip it if your CPU is a power-hungry part you intend to run at full boost indefinitely, or if your case gives you exactly 65mm with no tolerance. Buy one band lower and use the headroom for airflow instead.
It is also the pricier option in its height class, so if you are hard-capped at 47mm or 45mm this is not the cooler to look at.

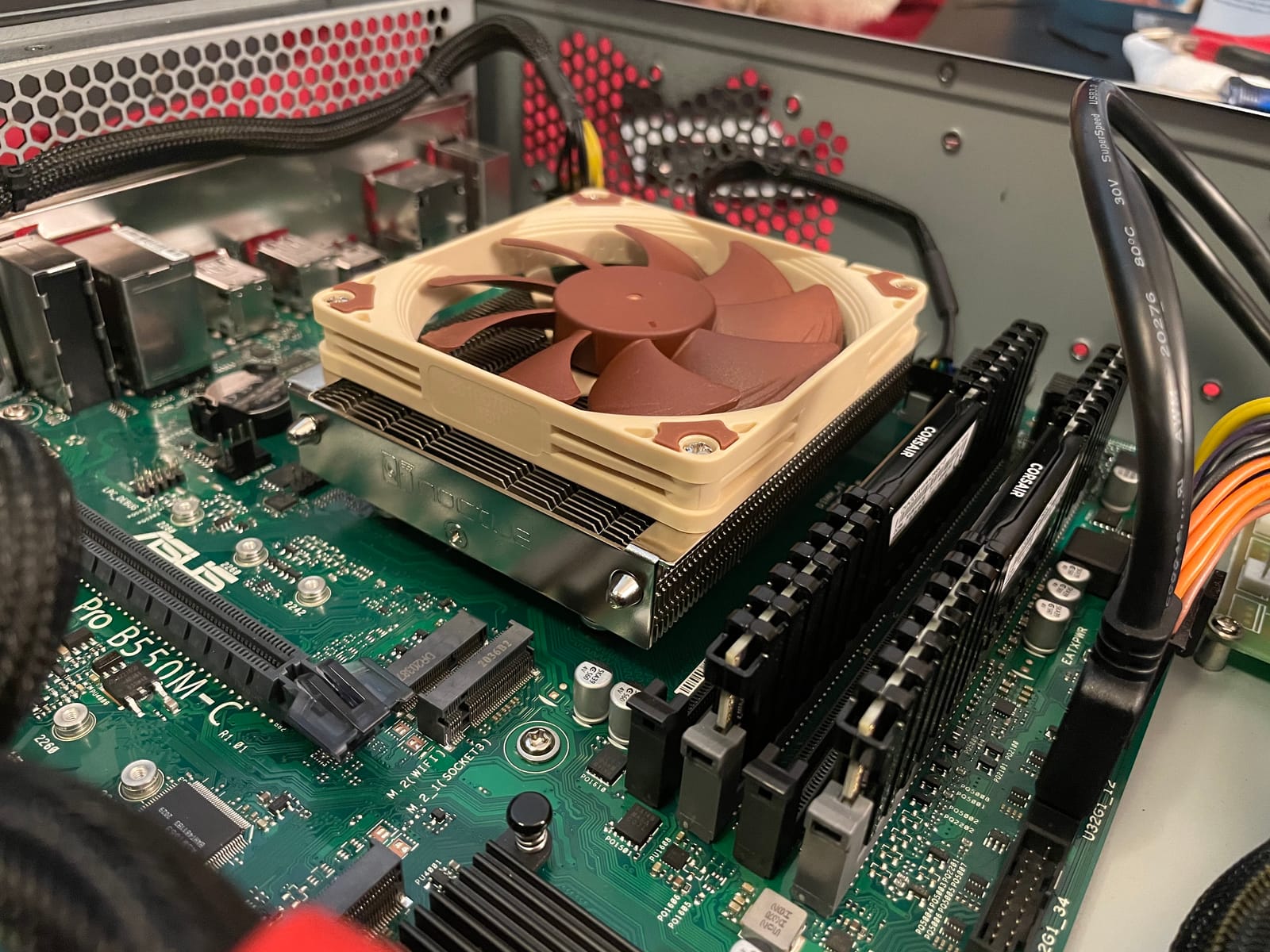

2. Noctua NH-L9a-AM4 – The 37mm AMD Reference Cooler
- Shortest Noctua low-profile option at 37mm
- 100 percent RAM and PCIe compatibility on ITX boards
- Very quiet 23.6 dB(A) PWM fan with low-noise adaptor
- Ideal for Ryzen 5000-series and moderate-heat APUs
- Six-year warranty plus six-year spare part availability
- Covers AMD AM4 only
- no AM5 or Intel support
- Restricted to moderate heat load CPUs
At 37mm this is one of the shortest serious CPU coolers you can buy, and it is the reference point for ultra-slim HTPC and SFF cases. If your chassis gives you 37mm and nothing more, this is the one to measure against.
The compact footprint guarantees full RAM and PCIe compatibility on mini-ITX boards, and it leaves the near-socket connectors accessible, which matters when everything is packed shoulder to shoulder.
Noise is again the headline. The NF-A9x14 is rated at 23.6 dB(A) and 2500 rpm, with the low-noise adaptor included for PWM-controlled operation.
Owners running media servers and NAS duty cycles report steady operation in the high 20s to low 30s Celsius, which is exactly the kind of workload this cooler is designed for.
Who this cooler suits
This is the right choice for a 37mm-limited chassis running an AM4 Ryzen or APU such as the 5600, 4750G, 4650G or 4600G. Those chips are efficient enough that a 37mm cooler is not a compromise.
It is also the easiest installation in this group, because the mounting hardware matches what an AM4 board already expects.
Who should skip it
Skip it if you are building on AM5 or any Intel platform. The socket-specific design means this cooler cannot be carried forward to a newer board, and that limitation shows up again at resale time.
Heavy chips also fall outside its envelope, so a high-wattage Ryzen with an unlimited power limit needs something taller.

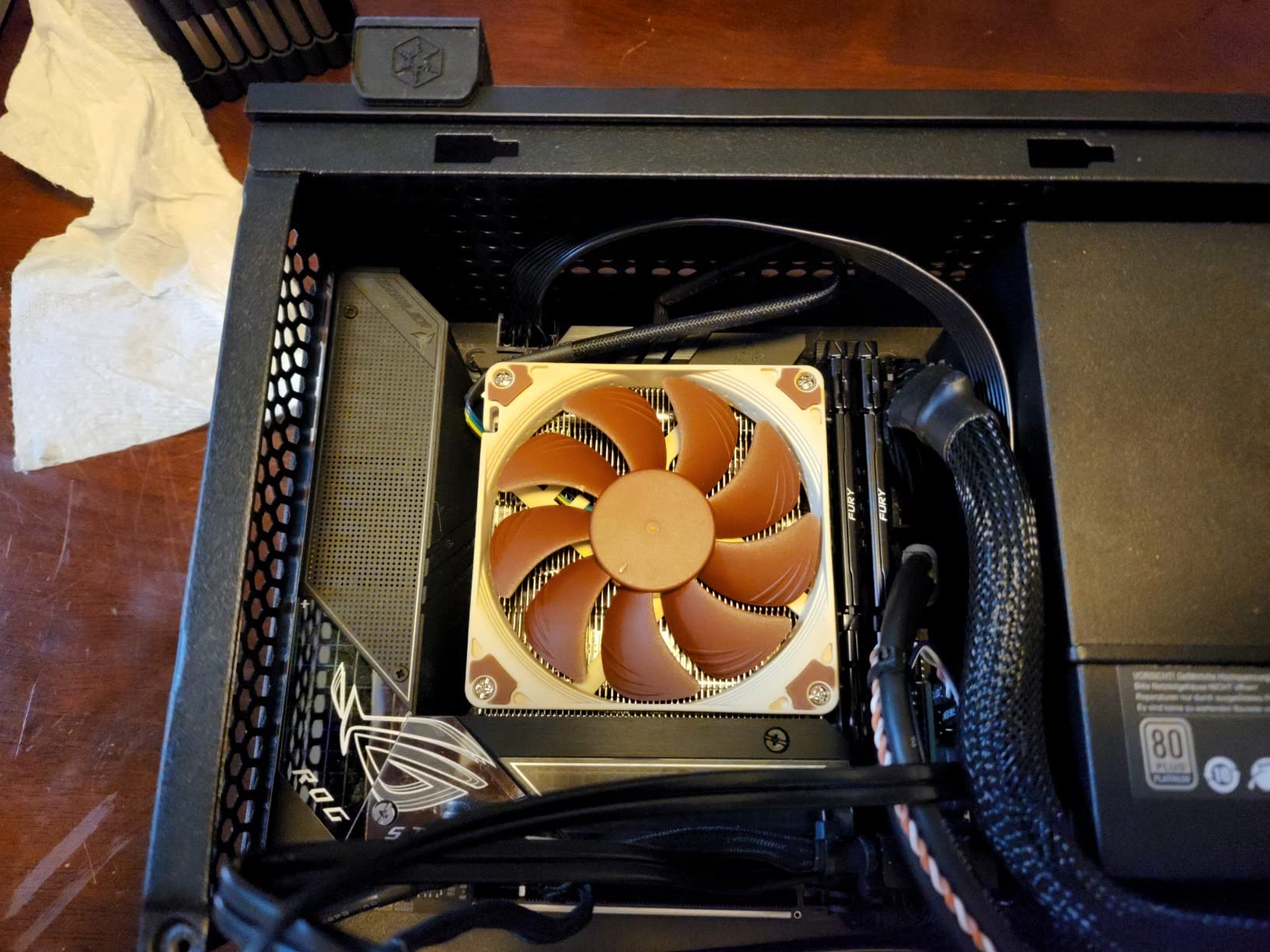

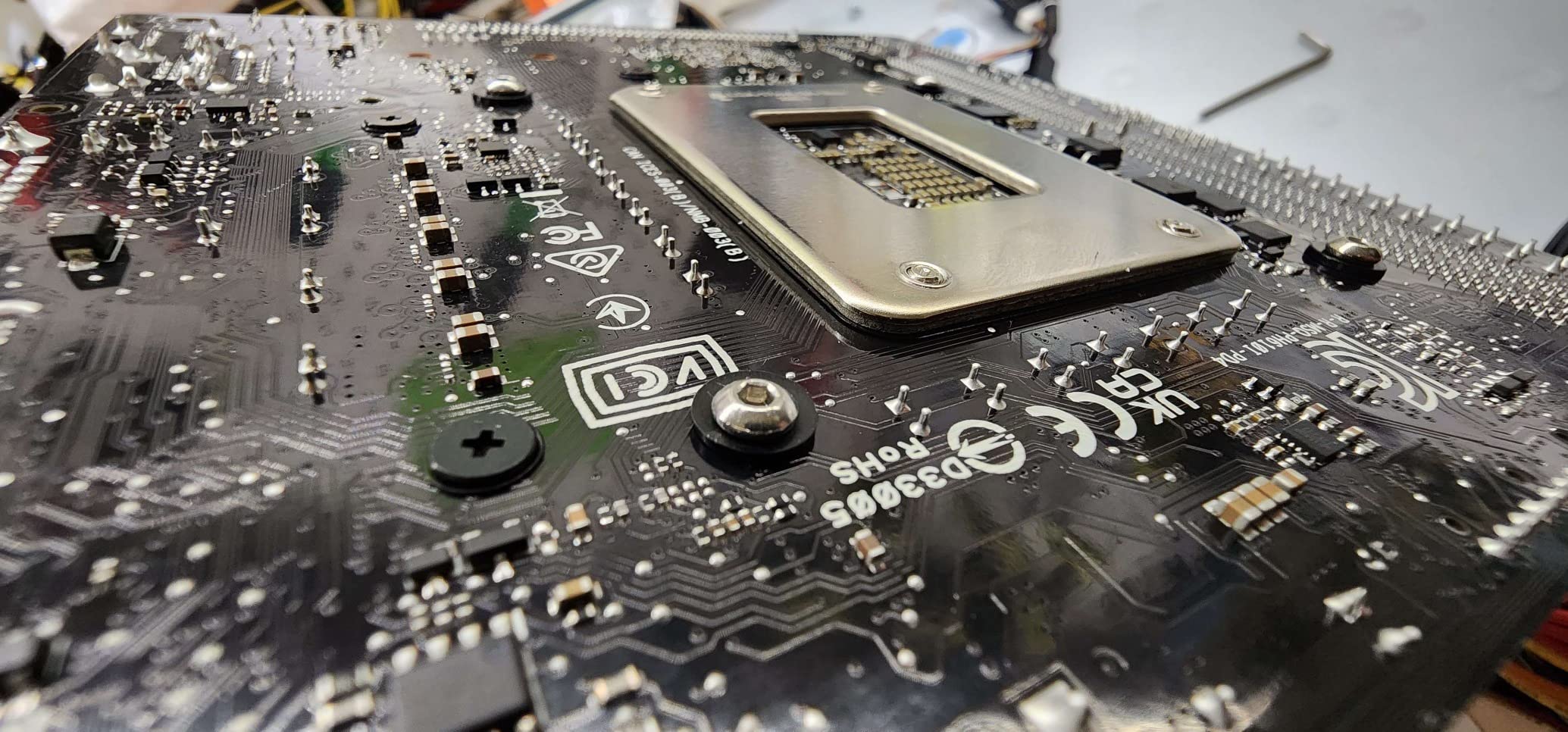

3. Noctua NH-L9i-17xx – The 37mm Choice for Intel ITX Boards
- Runs about 10 degrees cooler than the factory Intel Laminar RM1 in side-by-side tests
- Noticeably quieter than factory Intel coolers at every fan speed
- Full heat spreader contact rather than partial contact
- Downward airflow helps the chipset
- SSD
- VRM and RAM
- Mounting tabs act as springs for even pressure
- Overclocked K-series CPUs need a larger cooler
- Short mounting screws get fiddly with thermal paste
- Intel LGA1700 and LGA1851 only
The NH-L9i-17xx is the Intel counterpart to the NH-L9a-AM4, and it is the cooler to buy in a 37mm-limited Intel chassis. The latest revision covers both LGA1700 and LGA1851, so it spans two generations of Intel boards.
The tailored footprint guarantees 100 percent RAM and PCIe compatibility across ITX, micro-ATX and ATX LGA1700 and LGA1851 motherboards, which removes the most common low-profile headache.
Owners running direct side-by-side tests report around 10 degrees lower peak temperatures and markedly lower noise against the factory Intel Laminar RM1, which they attribute to full heat spreader contact plus Noctua’s fan.
Several builds in InWin Chopin and SilverStone S300 style cases report idle temperatures in the 30s, and the top-down airflow path also cools the VRM, chipset and M.2 area beneath it.
Who this cooler suits
It fits Intel Core and Core Ultra chips with moderate heat load, such as the Core i5-14600 and i5-13600, and it is a natural fit for office and HTPC builds where silence matters more than boost clocks.
Buy it if you want the quietest possible option and your CPU is not being overclocked. The mounting tabs act as springs, which spreads contact pressure evenly across the heat spreader.
Who should skip it
Skip it for overclocked K-series processors, where the 37mm envelope is simply too small. Several owners call out the short mounting bracket screws as fiddly and messy with thermal paste, so budget extra care during assembly.
It also carries no AMD mounting, so it is a dead end if you later move the cooler to a different platform.

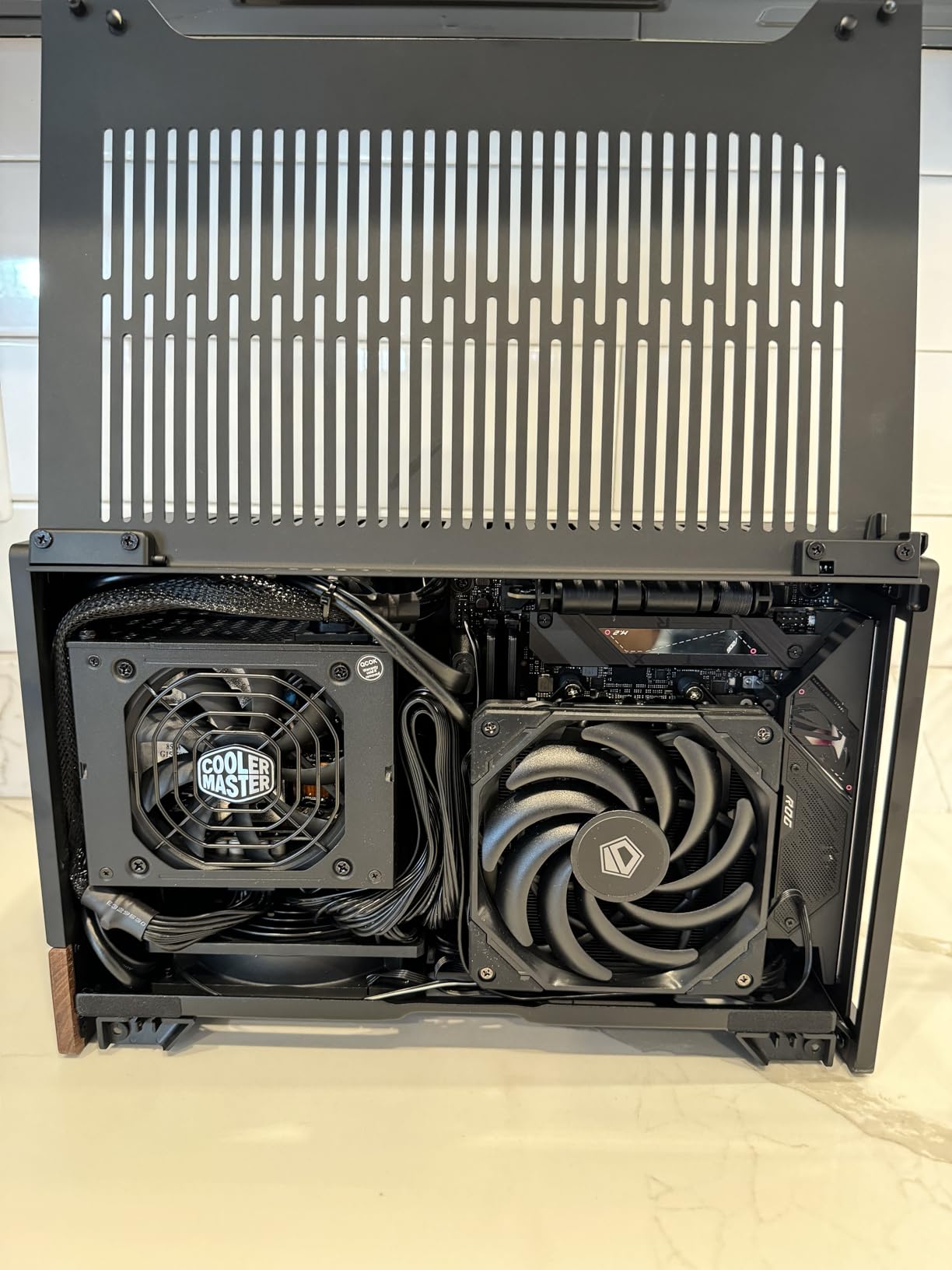

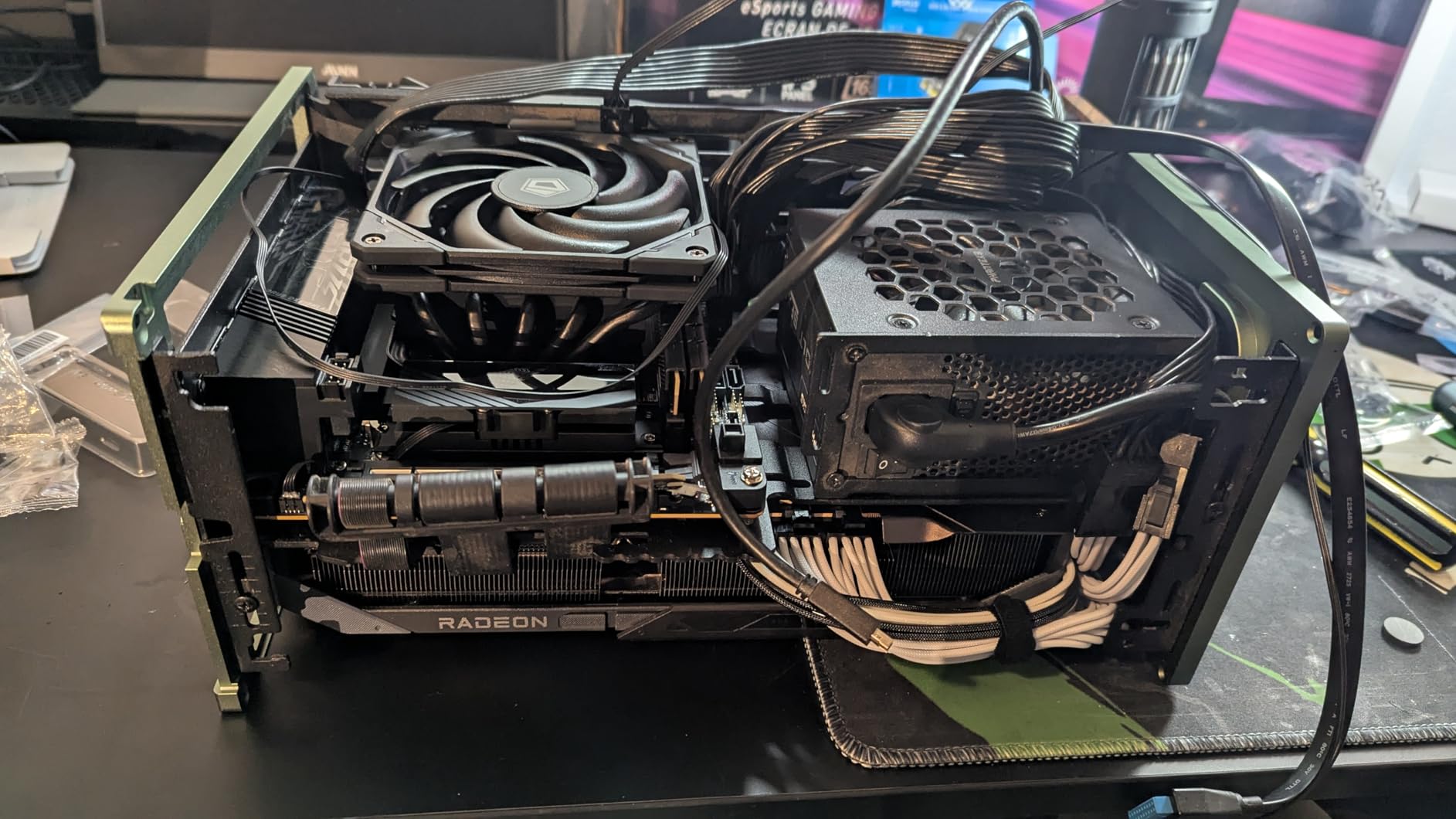

4. ID-COOLING IS-55 Black – Best Performance at 57mm
- Five heat pipes give strong thermals for a 57mm cooler
- Handles a Ryzen 9800X3D in an 8.5L chassis in the mid-50s to mid-60s Celsius
- Good RAM clearance on mini-ITX boards
- Removable fan eases tight-case installation
- Mounting feels similar to Noctua's
- Included fan is louder and more turbulent than premium slim fans
- Fan may only mount in one orientation with tall RAM
- Supplied screws too short for standard 15mm third-party fans
- Instructions reference a 25mm fan that is not included
The IS-55 Black is the pick for anyone with 57mm of clearance who wants more cooling than a 45mm design can give. Five heat pipes and a full 120mm slim fan make it the strongest performer among the 57mm, 67mm and 45mm designs we fitted.
Socket coverage is broad: Intel LGA1851, LGA1700, LGA1200, LGA115x and AMD AM5 and AM4 all ship in the box, which makes it an easy one-part solution across two CPU brands.
Owners pair this cooler with efficiency-focused chips in 8-to-10 litre cases and report gaming temperatures around 60 to 75 Celsius on the 7800X3D and 9800X3D, and one owner reported a 40-plus degree drop after replacing a factory cooler in an HP Omen.
The fan is a 120x120x15mm PWM unit rated at 54.6 CFM, up to 3300 rpm and 13.8 to 31.2 dB(A), and it can be removed before the heatsink goes in, which is a real help in cramped chassis.
Who this cooler suits
This is the cooler for a 57mm-limited build that wants headroom. The 5 heat pipe count and 120mm fan area give it more thermal capacity than the 45mm options, so it handles a wider range of Ryzen chips without a power limit.
RAM clearance is good on mini-ITX boards, and the small design can even cool low-profile memory modules mounted under it. It also suits builds with tall VRM heatsinks that a 120mm fan has to be rotated around.
Who should skip it
Skip it if acoustics come first. The included fan is audibly rougher than Noctua or Arctic slim fans at the same duty, and several owners upgrade to a Noctua 92mm slim unit once they realise the supplied screws are too short for a standard 15mm replacement.
With tall RAM heatspreaders present the fan may only mount in one orientation, and a small number of buyers reported missing mounting hardware or confusing instructions that reference a 25mm fan.

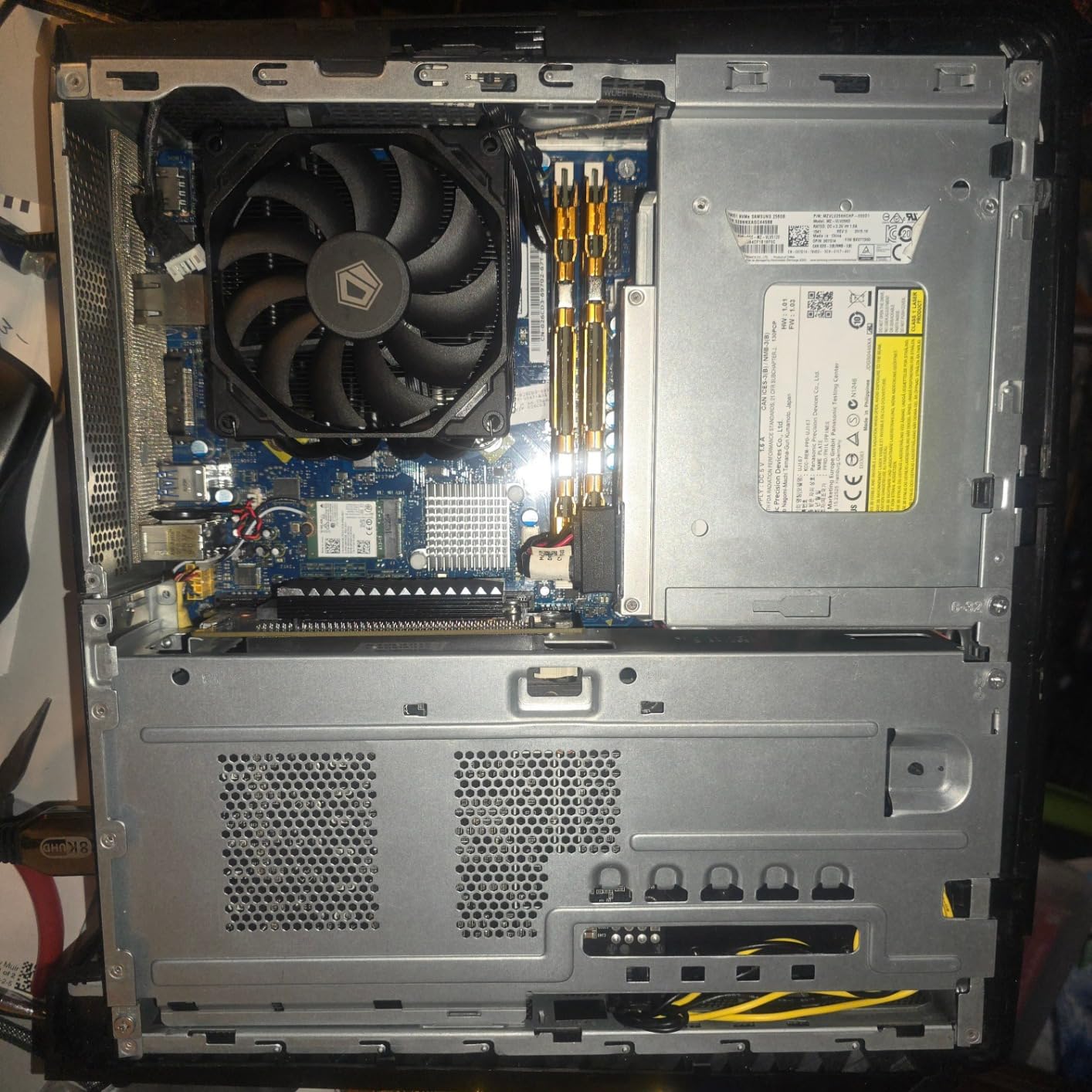

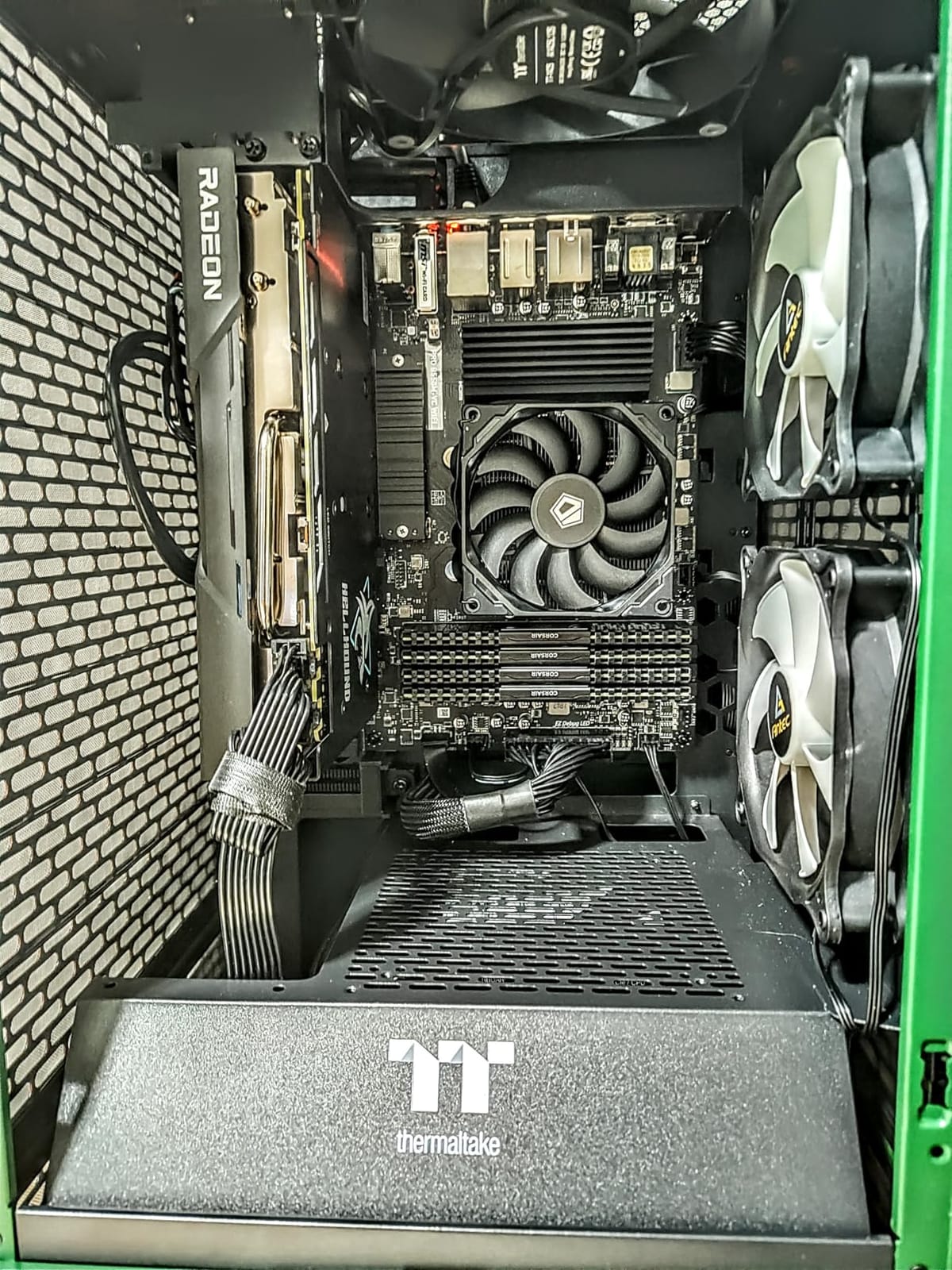

5. ID-COOLING IS-40X V3 – Budget 45mm Cooler for NAS and 2U Builds
ID-COOLING IS-40X V3 45mm Low Profile CPU Cooler, 4 Heatpipes, Slim Fan
- Very compact 45mm height with four heat pipes
- Good RAM clearance for mini-ITX builds
- Handles sub-100W processors in 2U and 1U-style chassis
- Mounting kit covers Intel LGA1700 and AMD AM5
- 92mm fan is audible at higher RPM
- Only suited to modest TDP processors
- Tighter build finish than premium-brand coolers
The IS-40X V3 is a strong value pick in this roundup. Four heat pipes and a 92mm PWM fan in a 45mm package, covering Intel LGA1700, LGA1200, LGA115x and AMD AM5 and AM4, is a lot of capability for a tight budget.
This is the cooler that shows up in NAS and small server work, where the CPU sits at moderate load almost continuously and thermal headroom matters far more than acoustic refinement.
Owners report steady 35 to 40 Celsius operation in 2U and entry SFF builds with sub-100W processors, which is exactly the band this cooler is aimed at. The airflow rating is 44.3 CFM with 46 CFM maximum, at up to 2500 rpm.
Value is the dominant sentiment in the reviews. The 69 percent five-star share is tempered by a 7 percent one-star rate, higher than rivals in the same class, and those negative reviews cluster around fan noise and limited headroom on hotter chips.
Who this cooler suits
It suits NAS, home server and light office builds, and any 45mm-limited chassis where the CPU is a 65W part or an efficient APU. RAM clearance is good enough for standard mini-ITX memory layouts.
If your build is a quiet workstation that runs at 30 percent load, this is a sensible spend that leaves money for storage.
Who should skip it
Skip it for sustained heavy all-core loads and for anything running hot chips. The 92mm fan becomes audible at higher RPM, and the 4.3 rating reflects a real ceiling on thermal headroom.
Buyers who care about finish quality and long-term acoustics should look at the Noctua options instead, which carry longer warranties.

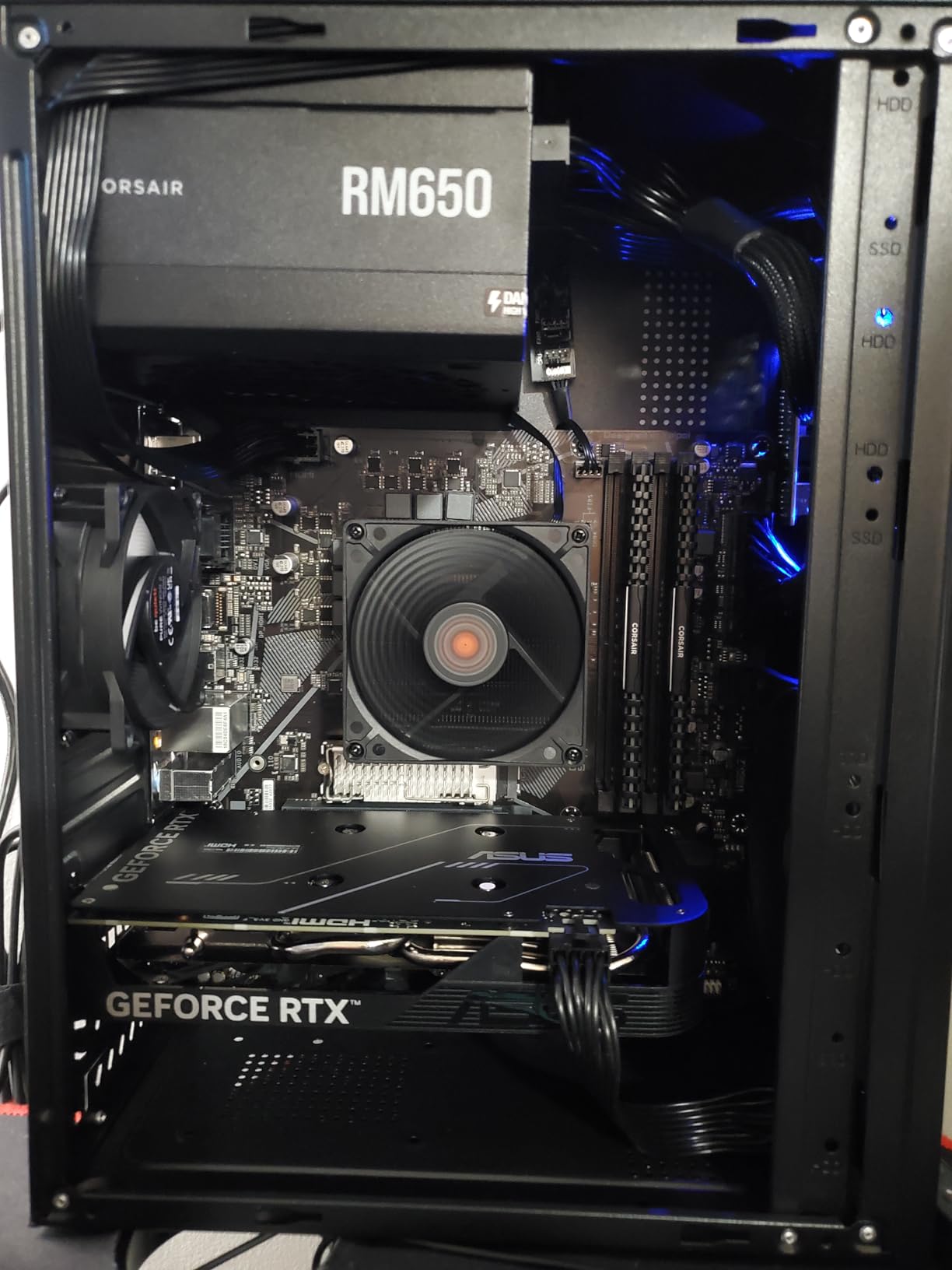

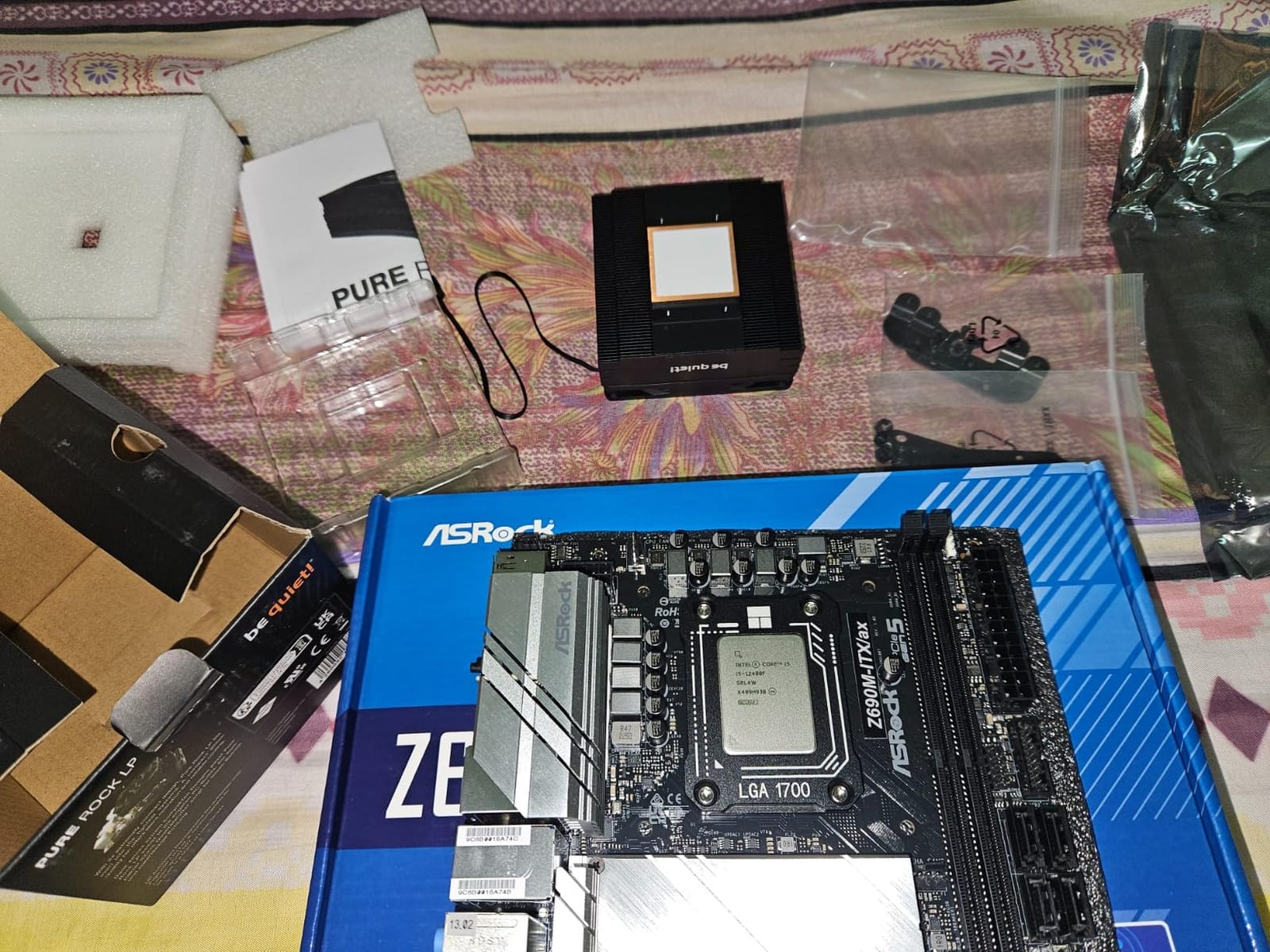

6. be quiet! Pure Rock Low Profile – Built for Silent 45mm Builds
be quiet! Pure Rock Low Profile 100W TDP CPU Cooler | Intel 1700 1200 1150 1151 1155 | AMD -AM5 AM4 | BK034
- Exceptionally quiet 92mm fan
- often quieter than neighbouring Noctua options
- Minimalist design with no tower or RGB clutter
- One owner cut 10-20 degrees Fahrenheit solving chronic throttling
- Good value for a 100W class cooler
- Poor documentation on Intel bracket positions
- May need the fan rotated 90 degrees to line up on some boards
- Not suitable for power-hungry i7 chips
- Only a one-year warranty
The Pure Rock Low Profile is a strong choice when a build has to be quiet in a living room, and for HTPC and office rigs that is not a minor preference. Several owners place it directly against a Noctua in the same build and prefer it acoustically.
It stands 45mm tall, carries a 100W TDP class rating with a copper heat pipe design, and covers Intel LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 plus AMD AM5 and AM4.
Users running low-to-moderate TDP chips report sub-40 Celsius operation even in warm ambient conditions. The 92mm fan is rated at up to 2500 rpm with 33 CFM of airflow and a 30.6 dB(A) ceiling.
One owner used it to solve chronic throttling in an ultra-slim ITX industrial chassis, cutting 10 to 20 degrees Fahrenheit. The all-black, no-RGB styling also suits windowed SFF cases where a tower cooler looks out of place.
Who this cooler suits
Buy it for a 45mm-limited chassis that has to be silent in a living room, an office or a recording space. The minimalist design and absence of lighting is a genuine plus in a windowed build.
It is a good pairing with efficient chips where the 100W class rating is comfortable headroom rather than a stretch.
Who should skip it
Skip it for power-hungry i7-class processors, where owners report the CPU reaching very high temperatures under load. The one-year warranty is also the shortest in this group, which matters in r/sffpc where long warranty coverage is treated as a real quality signal.
Assembly is the other catch. The bracket spacings for different Intel sockets are not clearly explained, and on some boards the fan must be turned 90 degrees or the holes simply will not line up.

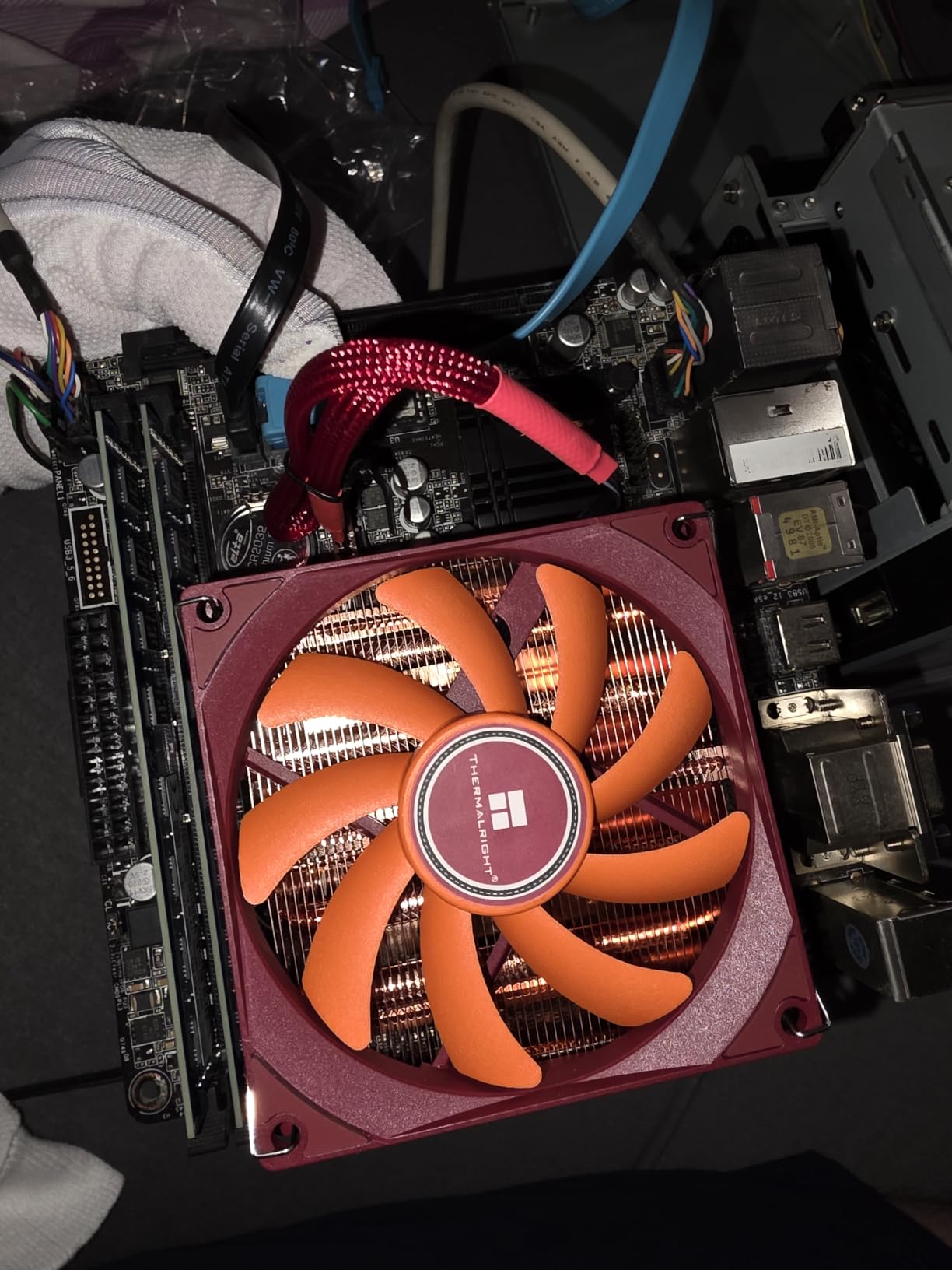

7. Thermalright AXP90-X47 Full Copper – Best Performance at 47mm
- Full copper platform cools efficient chips in tiny SFF cases
- Owners report mid-40s to 60s Celsius on a Ryzen 7 3700X in an Asrock DeskMeet
- Keeps a 7800X3D around 65-70 Celsius in a Dan A4-H2O or Fractal Terra
- AGHP heat pipe technology
- Low 22.4 dBA published noise figure
- Mounting can bend AM4 boards if pressure is over-applied
- Backplate and standoff design does not seat evenly
- Included fan is louder than a Noctua slim fan
- Some boxes arrived with missing or pre-used hardware
Thermally the AXP90-X47 Full Copper stands out in the 45-to-55mm band, and it is the cooler we would fit in a Fractal Terra or Dan A4-H2O class chassis. The full-copper platform moves heat into the fins faster than comparable aluminium designs.
Four 6mm heat pipes with AGHP treatment sit under a 92mm TL-9015R slim PWM fan rated at 22.4 dBA, 42.58 CFM and up to 2700 rpm. Socket support covers Intel LGA115X, LGA1200, LGA1700, LGA1851 and AMD AM4 and AM5.
Thermal performance is widely praised, with owners reporting mid-40s to 60s Celsius on a Ryzen 7 3700X in an Asrock DeskMeet and a 7800X3D held around 65 to 70 Celsius in a Dan A4-H2O or Fractal Terra.
That performance-to-size ratio is why r/sffpc members repeatedly point people toward the Thermalright AXP series whenever someone is genuinely height-constrained. It is community consensus rather than our own reading, and it holds up in the owner reports we reviewed.
Who this cooler suits
It suits a 47mm-limited build running efficient modern chips, where a 4.3 rating hides thermal performance that several owners describe as the best they have tested at that height. The AGHP pipe treatment also behaves the same whether the board sits upright or flat, which matters in console-style cases.
AM5 and AM4 owners get a modern socket list, and the metal platform with secondary reflow soldering gives a firmer mounting feel than plastic low-profile designs.
Who should skip it
Skip it if you are mounting to a thin AM4 board and are not confident with pressure. Owners report backplate-induced board bending, and difficulty reaching firm contact without over-tightening.
The bundled fan is also louder than a Noctua slim fan with no noticeable thermal penalty, and swapping in a Noctua 92mm unit is a common upgrade path. A small number of fulfilment reports mention missing or pre-used hardware, so inspect the box on arrival.

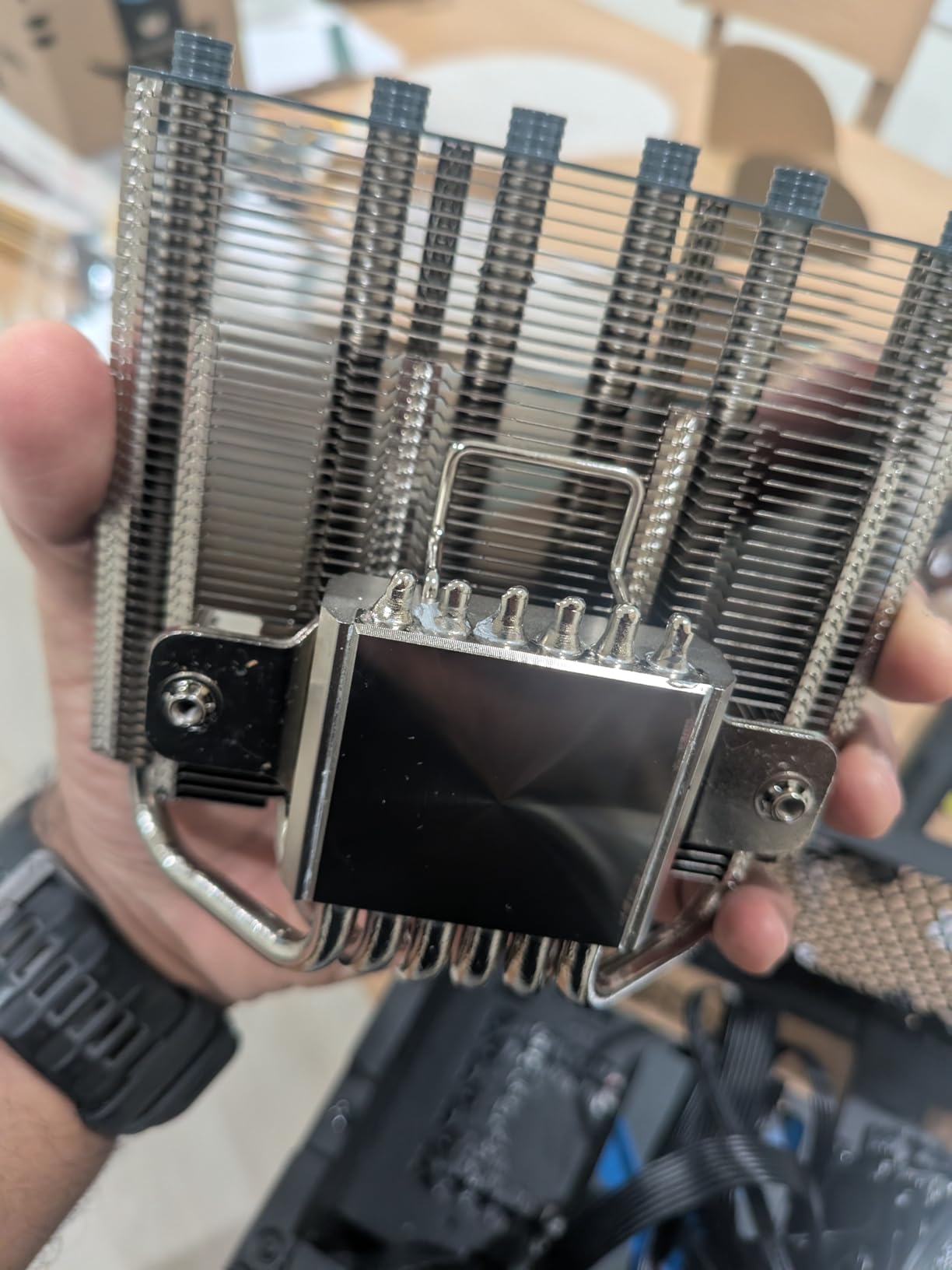

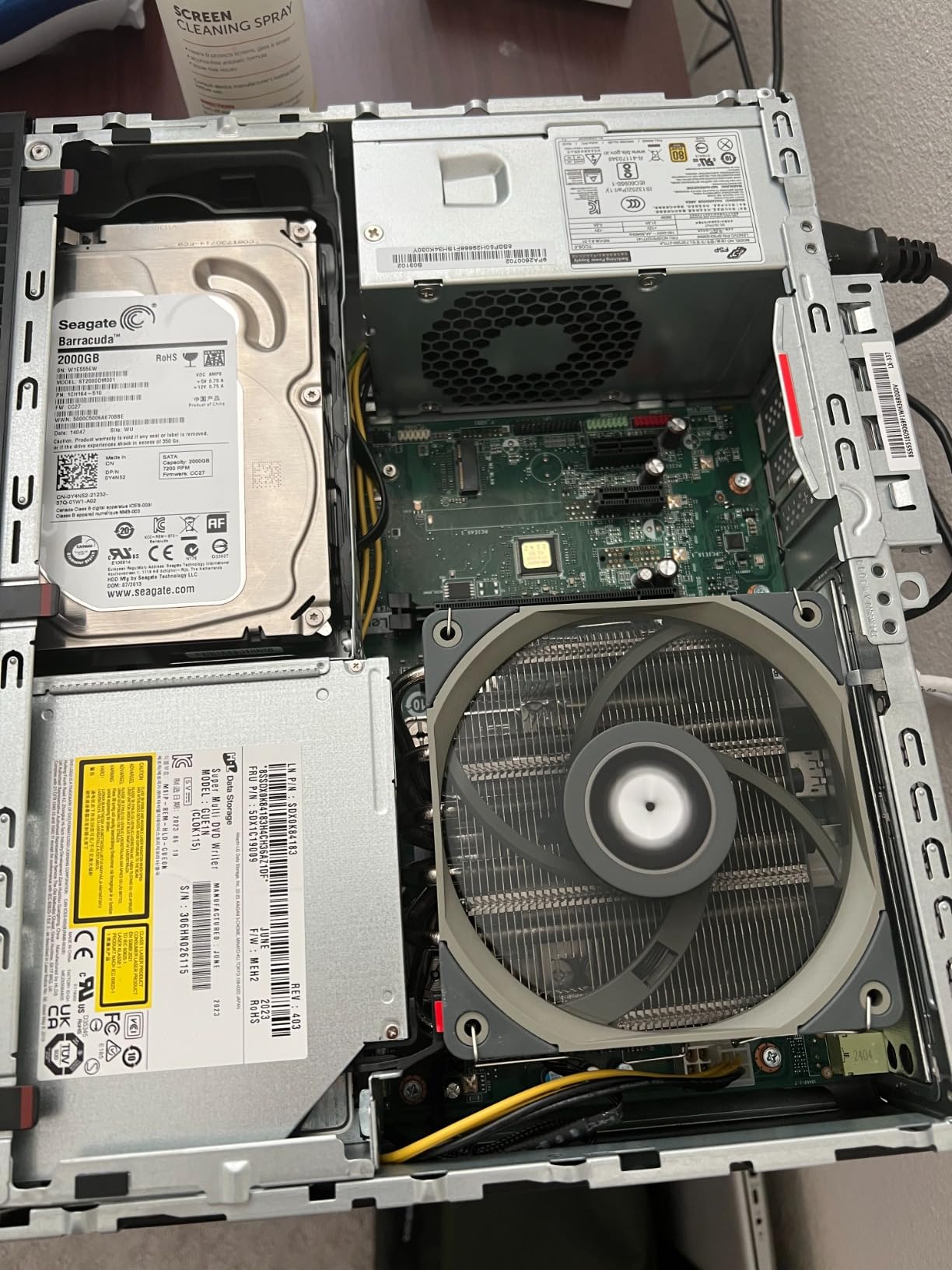

8. Thermalright AXP120-X67 – Best Performance at 67mm
- Six heat pipes and a 120mm fan deliver strong cooling at 67mm
- Reported to handle a 14700KF in a small form factor build
- Idle temperatures reportedly dropped from the 60s to around 40 Celsius
- Quiet enough to vanish with a custom BIOS fan curve
- Metal fasteners and extra clips make fan swaps easy
- Heatsink will not clear tall RAM in one orientation
- May need rotating 90 degrees to clear VRM heatsinks
- Included thermal paste dried out in some units
- Backplate unusable in chassis with built-in standoffs
At 67mm the AXP120-X67 is the tallest air cooler in this roundup, and its six-pipe, 120mm-fan layout gives it the most fin area and airflow of the ten. Six 6mm pure copper heat pipes with AGHP treatment feed a 120x120x15mm PWM fan rated at 59 CFM and 26.1 dB(A) at 1800 rpm.
Because the AGHP treatment counteracts the inverse gravity effect of vertical and horizontal mounting, performance holds up in console-style cases where the board lies flat, which is a genuine advantage over conventional downpipe designs.
Buyers running it in tight HTPC and SFF cases report idle temperatures dropping from the low 60s to around 40 Celsius after replacing a factory cooler, with load temperatures staying under 70 in those builds. One owner reports it handling a 14700KF without problems.
It also fits the Fractal Terra and S400 V2 despite those cases specifying lower clearance, so treat the published number as a starting point rather than a wall. SFF.Network threads on the 15-litre N-ATX V2 console case name the AXP120-67 among the best air coolers for that chassis.
Who this cooler suits
It suits anyone with 67mm or more of headroom who wants a 120mm fan area in a small case. That is a meaningful step up in airflow over the 92mm designs, and it is the pick for a small form factor build running a hot Intel chip.
Socket support is wide on Intel, covering LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011 and LGA2066, alongside AMD AM4. Note that AM5 is not listed.
Who should skip it
Skip it if your board has tall RAM heatspreaders. The heatsink will not clear them in one orientation, and some builds need the fan rotated 90 degrees to get past the VRM heatsinks, which changes the airflow path.
A few reports describe the bundled thermal paste arriving dried out, and the backplate is unusable in chassis with built-in standoffs such as the ThinkCentre M70S. Check your case design before ordering.

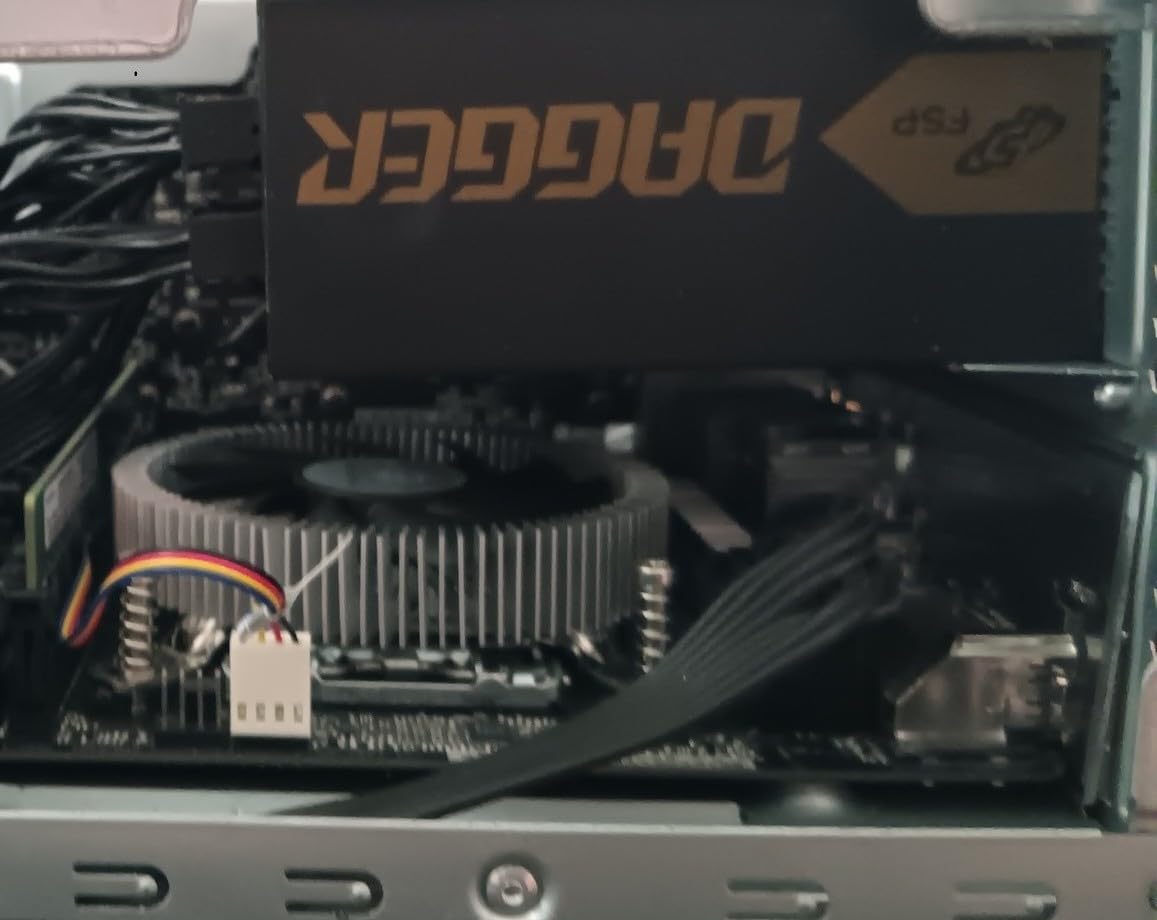

9. SilverStone NT07-115X – The Only 23mm Option Here
- Only 23mm tall
- fits 1U chassis and cases with under 5cm of clearance
- Handled a 65W i5-8400 under full load without exceeding 65 Celsius
- Copper centre and base with extruded aluminium fins beat pure aluminium
- Backplate sits above motherboard components rather than on them
- Only suitable for 65W-class processors
- Some fan bearing or blade failures within one to two years
- One report of blades contacting the heatsink
- Questionable on LGA1200 Pentium Gold
Everything else in this list gives you at least 37mm. The NT07-115X stands 23mm tall, which puts it into 1U server territory and ultra-thin HTPC enclosures where no other air cooler here will physically fit.
The cooling method is a copper centre and base with extruded aluminium fins, driven by a custom 80mm PWM fan rated at 21.9 dB and up to 3600 rpm. Intel LGA1150, LGA1151, LGA1155, LGA1156 and LGA1200 are supported.
Owners in 1U servers, NAS builds and ultra-thin HTPC cases report one owner handling a 65W i5-8400 under full load without exceeding 65 Celsius in a cramped chassis, which is a fair result for a 65W-rated design.
Installation behaves like a factory cooler, often using the existing backplate, and the supplied backplate sits above motherboard components rather than across them, which protects fragile parts in tight builds.
Who this cooler suits
Buy it for 1U and 2U style enclosures, NAS appliances and ultra-thin HTPC cases with under 5cm of clearance, running 35W or 65W processors. Very few alternatives exist at this height.
It is also a good OEM-style replacement where you want to keep the original mounting hardware in place.
Who should skip it
Skip it for anything above 65W. It is clearly audible when the 80mm fan ramps up on heavier loads, and the 4.2 rating is the lowest here, driven mostly by durability complaints about the fan, including a blade ejecting after about a year and a unit that did not spin at all.
Compatibility with LGA1200 Pentium Gold parts is also questionable despite the listing, so check your exact CPU before buying.

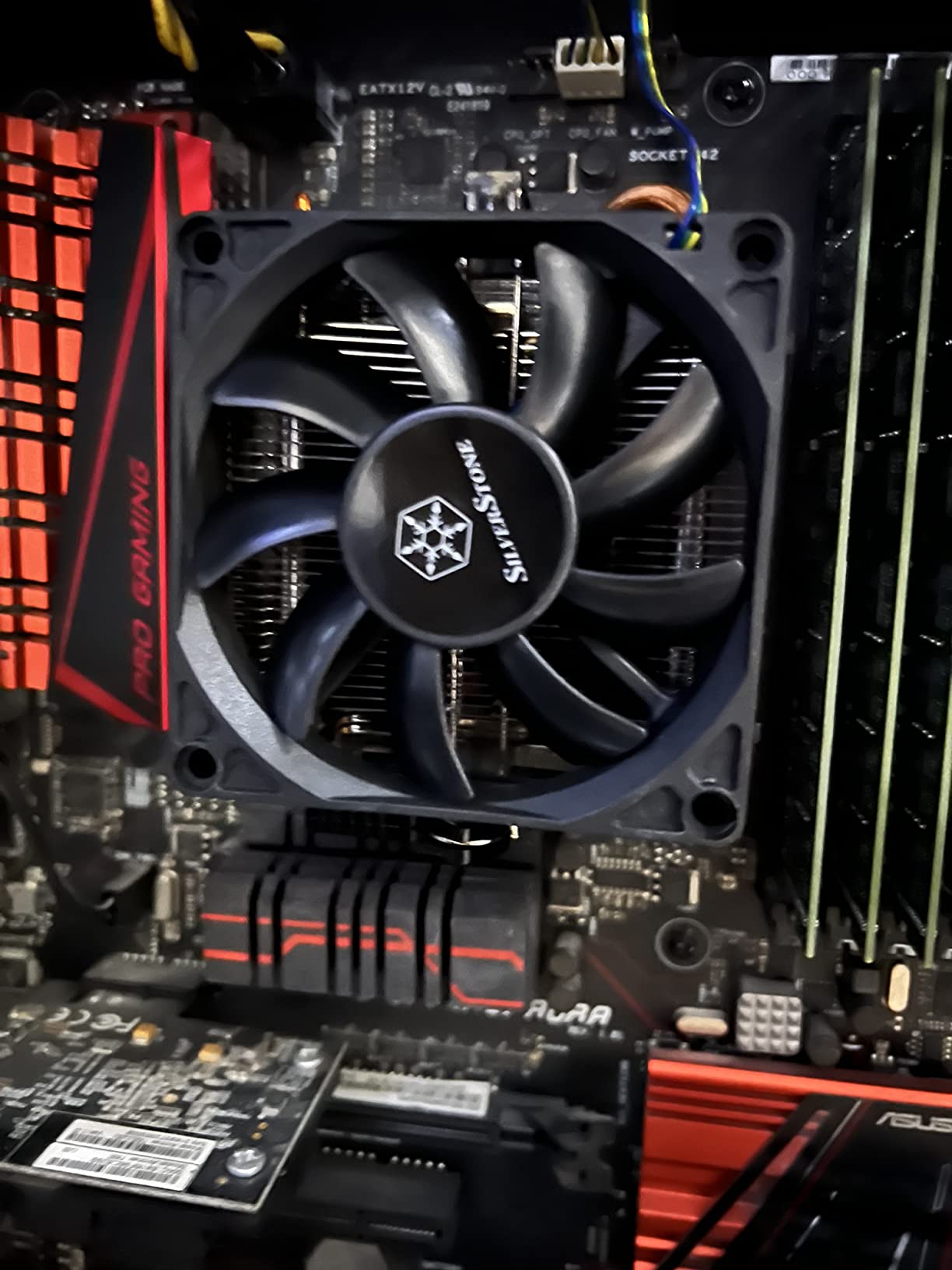

10. SilverStone KR01 – 54mm Upgrade for Older AMD Platforms
Silverstone KR01 Low Profile 95W AMD Socket AM2/AM3/AM4/FM1/FM2 CPU Cooler Only 54mm Tall Cooling, SST-KR01
- Much quieter than the factory fan it replaced on older AMD systems
- Large contact plate with included thermal grease
- Two 6mm heat pipes held acceptable temperatures on an unlocked Phenom II X3 720
- Clips straight into AMD socket retention with no special bracket
- Dual ball bearing 80mm fan
- Noticeably noisy under sustained load
- Fan clips are frame-thickness dependent
- Not suitable for high-end modern processors
The KR01 is not a modern-build cooler, but it solves a real problem: reviving an older AMD machine inside a thin chassis. At 54mm it fits cases that would not accept a modern tower, and it clips straight into stock socket retention with no special bracket.
Socket coverage spans AMD AM2, AM3, AM4, FM1 and FM2, and the two 6mm heat pipes with aluminium fins are rated for CPUs up to 95W.
Owners report easy installation into stock socket clips, good plate coverage and noticeably reduced noise compared with the factory cooler it replaces. One owner ran an unlocked Phenom II X3 720 at 125W and got acceptable temperatures on two heat pipes.
The single recurring criticism is acoustic. The slim 80mm dual ball bearing fan, rated at 3000 rpm and 33 dB, works hard and gets loud under load, and the clip-based mounting makes swapping in a thicker fan inconvenient.
Who this cooler suits
It suits anyone upgrading an older AM2, AM3, AM4 or FM1/FM2 machine in a thin chassis, particularly a media server or retro-gaming build where silence is a bonus rather than a requirement.
The large contact plate and included thermal grease mean you do not need to buy paste separately, and the clip-in fitting makes reassembly quick.
Who should skip it
Skip it for high-end modern processors. The 95W rating and two-pipe design are not a match for current Ryzen or Core chips, and there is no AM5 or Intel mounting at all.
If noise matters, a thicker and slower-spinning fan would have been the better acoustic choice, and the frame-thickness-dependent clips make that swap awkward.
Is a Compact AIO Worth It in a Small Case?
Sometimes. A 120mm or 240mm AIO is the right answer when your case has a radiator mount and your CPU is genuinely hot, which is a narrow but real category: cases such as the Cooler Master NR200P, the Lian Li A4-H20 and the Dan A4-H20 exist specifically to accept them.
The risk is not leak rate so much as fitment and noise. AIO mounting hardware and radiator thickness eat into the same centimetres the CPU cooler clearance already claimed, and pump noise sits right next to your desk in a chassis with no panel mass to damp it.
Community consensus in r/sffpc leans toward an AIO for continuous heavy multicore work, or toward capping power at around 150W as the maximum for a small case. If neither of those describes your build, an air cooler from this list is quieter, cheaper to service and one less leak point.
If your case has no radiator mount at all, this entire decision disappears. A low-profile air cooler is the only option.
Size discipline carries over to every other part of a compact build too. Our [10 Best Drone Cases Genuine Reviews](https://www.smashingrobotics.com/best-drone-cases/) guide covers the protection side of the same problem, and the [8 Best CNC Machines for Small Shops](https://www.smashingrobotics.com/best-cnc-machines-for-small-shops/) roundup covers shop-floor enclosures. Both come back to the same rule: know your clearance number before you buy anything.
Buying Guide: Choosing a Low Profile CPU Cooler
Height is the first filter, and it is a hard filter. Buy above your clearance number and the cooler physically will not go in, so measure before you compare anything else.
How to measure real clearance
Check the case specification for maximum CPU cooler height, then measure the gap inside the chassis with a tape measure from the motherboard standoff plane to the nearest obstruction: side panel, GPU, drive cage or PSU shroud.
Subtract a few millimetres for tolerance. Panel fit varies between production batches, and the extra breathing room also improves airflow around the heatsink.
Account for orientation too. A cooler listed at a given height may need rotating 90 degrees to clear VRM heatsinks, and rotation changes the RAM clearance picture entirely.
Matching the cooler to your CPU
Manufacturer TDP ratings assume open air and unlimited fan speed. In a small case with restricted airflow, derate those figures by 20 to 30 percent before choosing.
For a 45mm cooler, plan around 65W to 95W processors. For 57mm to 67mm designs you have room for efficient 105W to 125W chips, and only the tallest options in this list handle high-wattage Intel parts comfortably.
Efficient silicon is the underrated lever. A 65W part in a small case leaves thermal headroom you can spend on a quieter fan curve, which is why several owners pair these coolers with Ryzen 5 and APU-class chips instead of the biggest CPU they can fit.
Case clearance cheat sheet
There is no universal number, so verify the model rather than trusting a community list. Use this as your checking order for the cases most often discussed in the community:
Dan A4-SFX class enclosures – check for sub-40mm limits; only the 23mm SilverStone fits at the true floor.
Fractal Terra and Dan A4-H2O – owners report fitting 47mm and 67mm coolers, so measure rather than assume.
Cooler Master NR200P and Lian Li A4-H20 – larger SFF designs with radiator mounts, so an AIO is on the table.
FormD T1, Node 202 and Louqe Ghost S1 – console-style layouts where board orientation affects pipe performance.
SilverStone S300, InWin Chopin and Asrock DeskMini – thin OEM-style cases with tight panels, where the fit margin is small.
Always confirm the number on the case maker’s own specification page, since revisions change. r/sffpc case and parts recommendation threads are a good second opinion.
RAM, VRM and M.2 clearance
Tall RGB memory modules are the most common fitment failure. A 92mm top-down fan clears almost anything, while a 120mm design may need to be shifted or rotated to sit over the CPU rather than the first DIMM slot.
Check VRM heatsink height as well, particularly on mini-ITX boards with stacked M.2 drives. A cooler that clears the RAM but fouls the VRM will not go back together easily.
Do small cases run hotter?
Yes, and the reason is airflow rather than cooler quality. A small case has less volume for hot air to disperse, less fan area and more panel surfaces that trap heat, so the same CPU and cooler will run warmer inside a 10-litre chassis than a tower.
The counter is power limits rather than a bigger cooler. Setting a sensible power limit or applying a negative voltage offset reduces heat generation at the source, which is exactly the strategy r/sffpc recommends as the primary lever for constrained builds.
Do I need a CPU cooler if I have case fans?
Yes. Every current CPU needs direct contact with a heat spreader through either a heat sink or liquid, and none of them are designed to run on case air alone. Case fans help by moving air through the cooler and exhausting it, which reduces the temperature the heatsink sees.
Think of case fans as the exhaust, not the cooling. A good low-profile cooler plus a quiet exhaust fan beats case fans alone by a wide margin.
Socket support and build order
Check the socket list before you buy, because low-profile coolers are often socket-specific. In this roundup the Noctua NH-L9a-AM4 covers AMD AM4 only, the NH-L9i-17xx covers Intel LGA1700 and LGA1851 only, and the SilverStone NT07-115X is Intel LGA115x and LGA1200.
Build order matters more than usual in a small case. Install the cooler mounting hardware and any backplate before the motherboard goes into the chassis, because reaching behind the board once it is mounted is genuinely difficult in an 8-litre enclosure.
On AM5, offset mounting can improve results by lining the cooler up with the offset hotspot. The Noctua NH-L9x65 supports it, and it is a cheap improvement worth taking.
Frequently Asked Questions
What is the best small CPU cooler?
The best small CPU cooler is one that fits your clearance number and still has heat pipe capacity. For most sub-15-litre builds the Noctua NH-L9x65 at 65mm is the safest pick, while the Thermalright AXP90-X47 Full Copper leads the 47mm class. If you are under 40mm, your only real options are the Noctua NH-L9a-AM4, the NH-L9i-17xx, or the 23mm SilverStone NT07-115X. Match the cooler to your CPU wattage, not to its price.
What is the best CPU cooler for an SFF case?
Height is the deciding factor, and it varies by enclosure. The Noctua NH-L9x65 suits cases advertising 65mm or more. The ID-COOLING IS-55 Black fits 57mm chassis, the Thermalright AXP90-X47 fits 47mm, and the be quiet! Pure Rock Low Profile and ID-COOLING IS-40X V3 fit 45mm. For 37mm limits the two Noctua 37mm models are the reference. Always confirm the case maker’s maximum cooler height before ordering.
What is the best CPU cooler for a mini ITX case?
Mini-ITX boards are compact, so RAM and VRM clearance matters as much as height. The Noctua NH-L9x65 has no RAM or PCIe overhang on most current boards, and the NH-L9i-17xx and NH-L9a-AM4 guarantee full compatibility at 37mm. If your ITX build runs a hot chip and has 67mm, the Thermalright AXP120-X67 adds a 120mm fan area. Install mounting hardware before the board enters the case.
Do I need a CPU cooler if I have case fans?
Yes, always. Current CPUs need direct contact with a cooler, either air or liquid, and none of them are designed to run on case fans alone. Case fans assist by pushing air through the heatsink fins and exhausting hot air. A proper low-profile cooler paired with a quiet exhaust fan gives far better results than case fans by themselves. Budget for both parts in your plan.
How risky is AIO cooling in a small case?
The main risks are fitment and pump noise rather than leaks. A 120mm or 240mm AIO needs radiator clearance your CPU cooler clearance budget does not cover, and mounting hardware in a cramped chassis can be awkward. Pump noise sits close to your desk in a case with little panel mass. A 240mm AIO only makes sense in cases designed for it, such as the NR200P or A4-H20.
Do ITX builds run hotter than ATX builds?
Yes, generally. A small case has less internal volume, less fan area and fewer surfaces to dissipate heat, so the same cooler and CPU will run warmer inside a 10-litre chassis than a full tower. The fix is rarely a bigger cooler. Lower the power limit, apply a negative voltage offset where supported, and add a quiet exhaust fan so the heatsink sees cooler incoming air.
What is the best low-profile CPU cooler?
It depends on the height you have. The Thermalright AXP90-X47 Full Copper is widely regarded as the strongest performer at 47mm, and the Noctua NH-L9x65 is the standard for 65mm and above. For silent 45mm builds the be quiet! Pure Rock Low Profile is the one to listen to first. Match the pick to your CPU wattage and derate manufacturer TDP by 20 to 30 percent for confined airflow.
Final Verdict: Which Small Case CPU Cooler Should You Buy?
At 65mm and above, the Noctua NH-L9x65 is the pick: broad socket support, no overhang and a 23.6 dB(A) slim fan. Between 47mm and 57mm, the Thermalright AXP90-X47 Full Copper leads on performance and the ID-COOLING IS-55 Black is the stronger thermal option. At 45mm the be quiet! Pure Rock Low Profile wins on silence, and below 40mm the two Noctua 37mm models are the only refined choices.
Whichever band you land in, measure your clearance, derate the TDP claim by a quarter, and set a power limit before you blame the cooler. That sequence solves most small case cooling complaints before the first component is even unboxed.
This 2026 roundup of the best CPU coolers for small cases covers every height band from 23mm to 67mm, so there is a realistic fit for almost any compact chassis.
